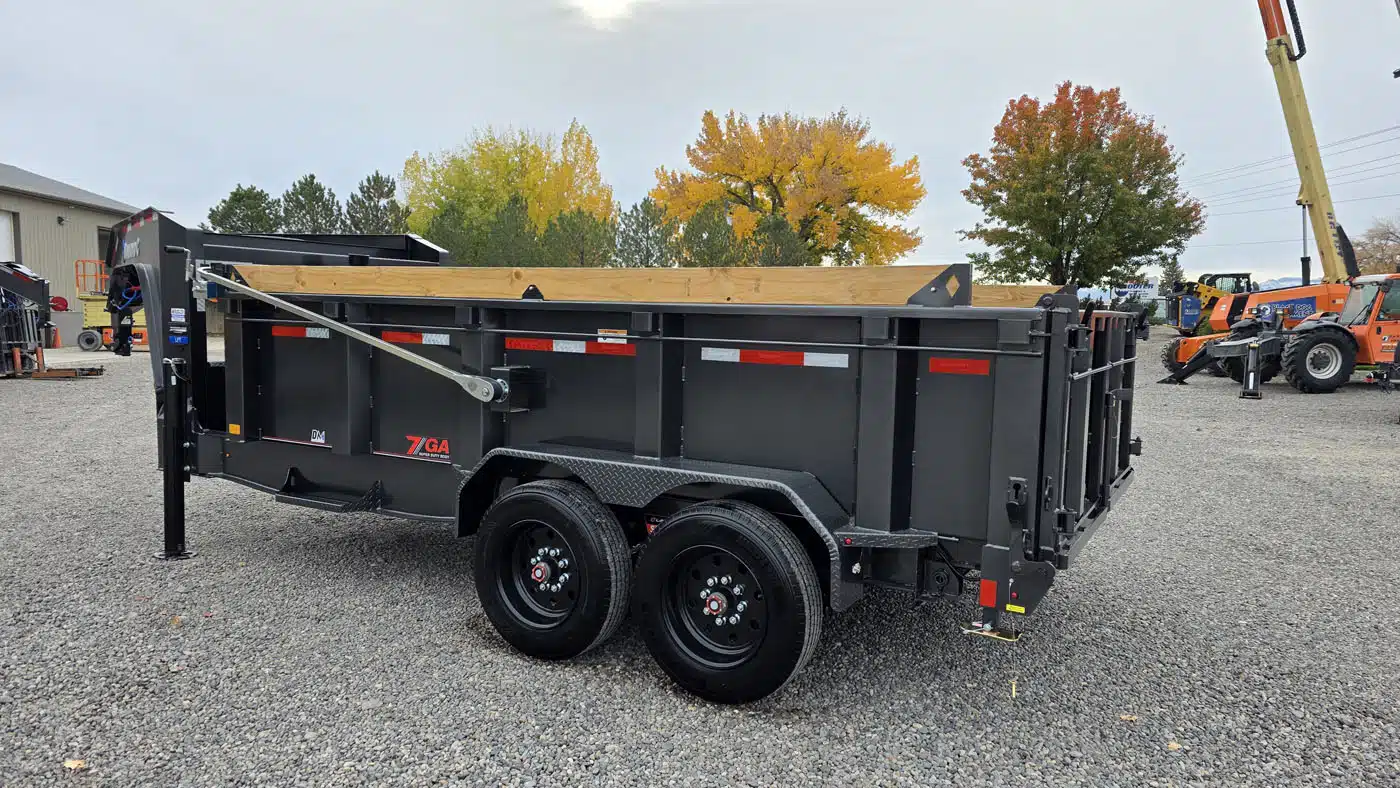

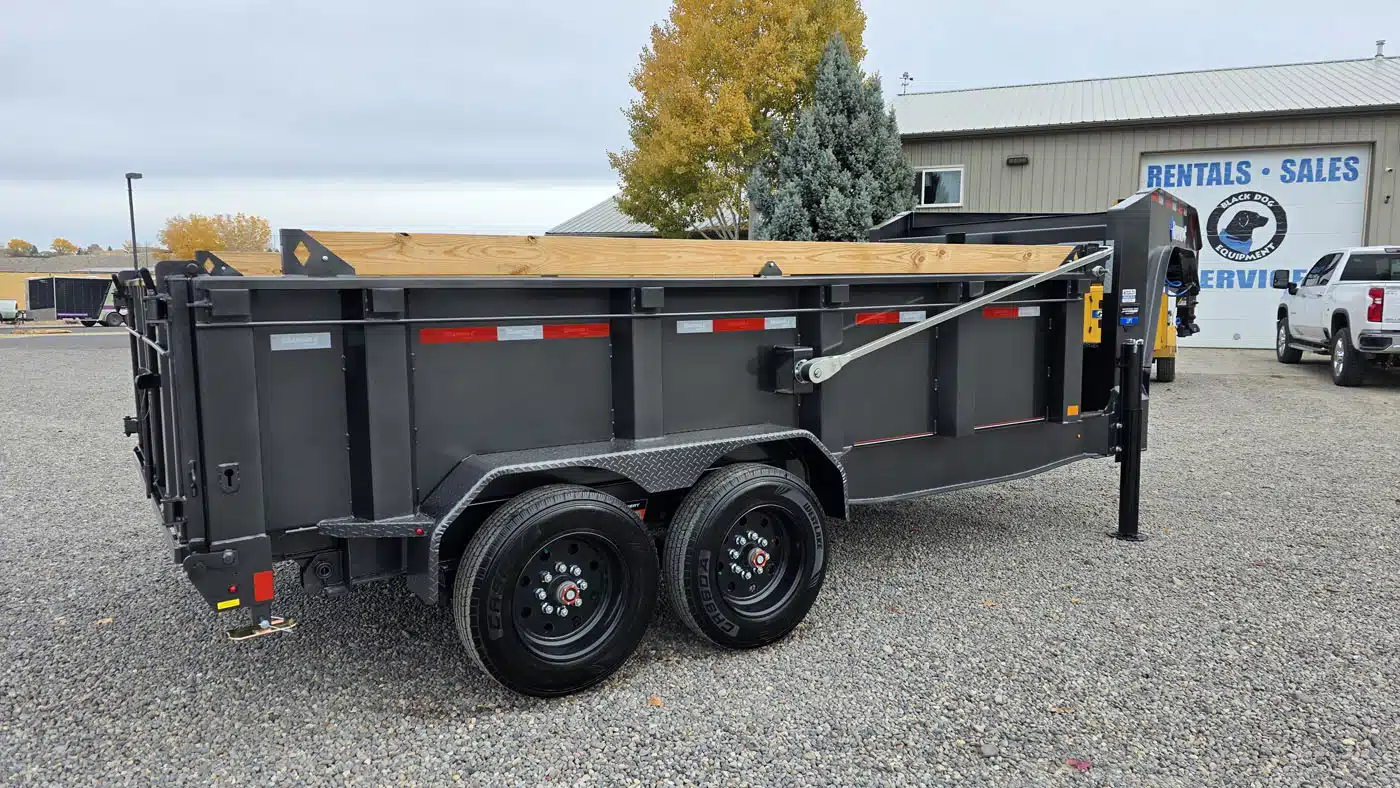

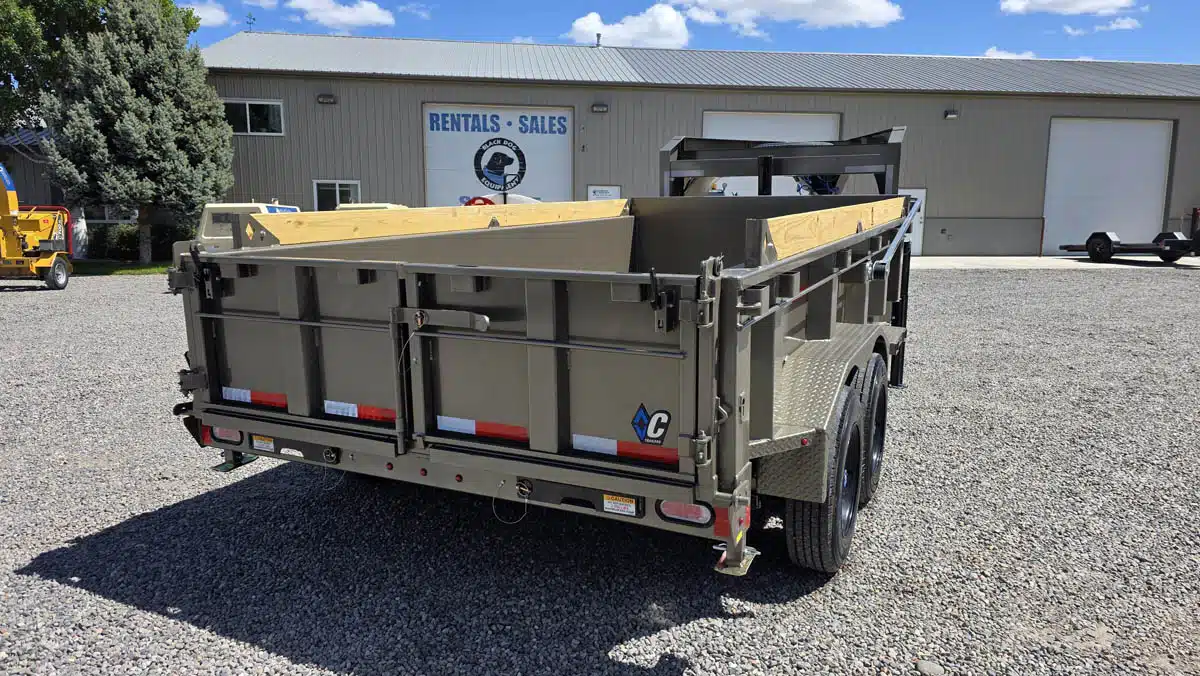

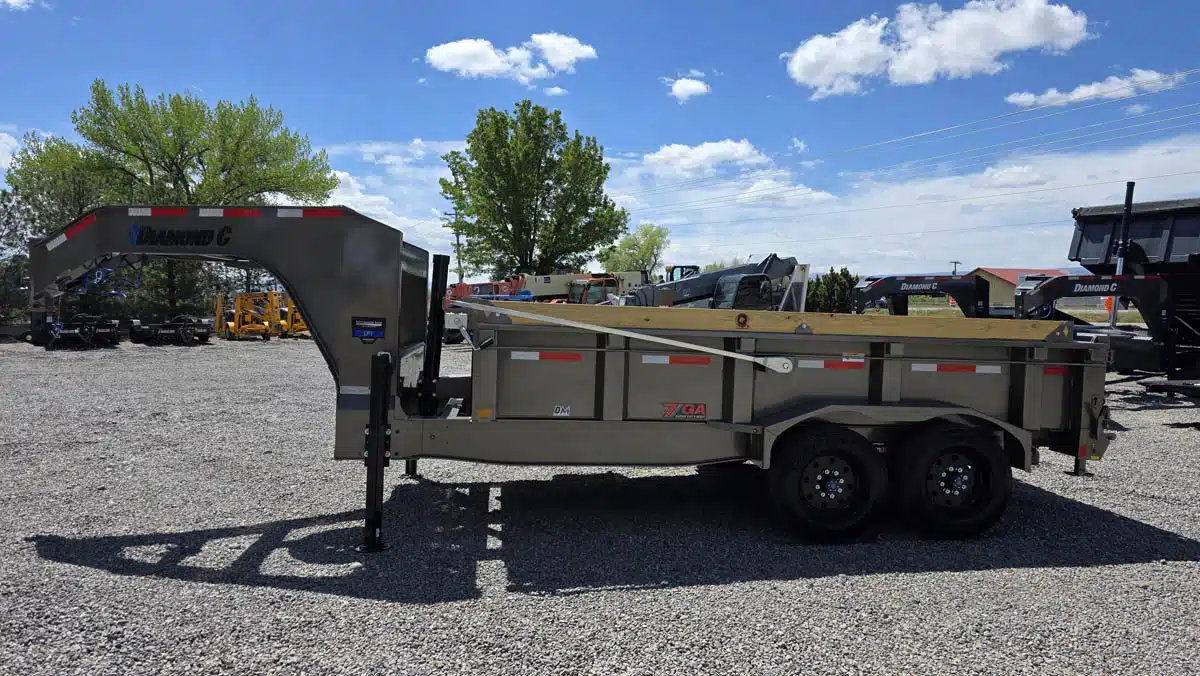

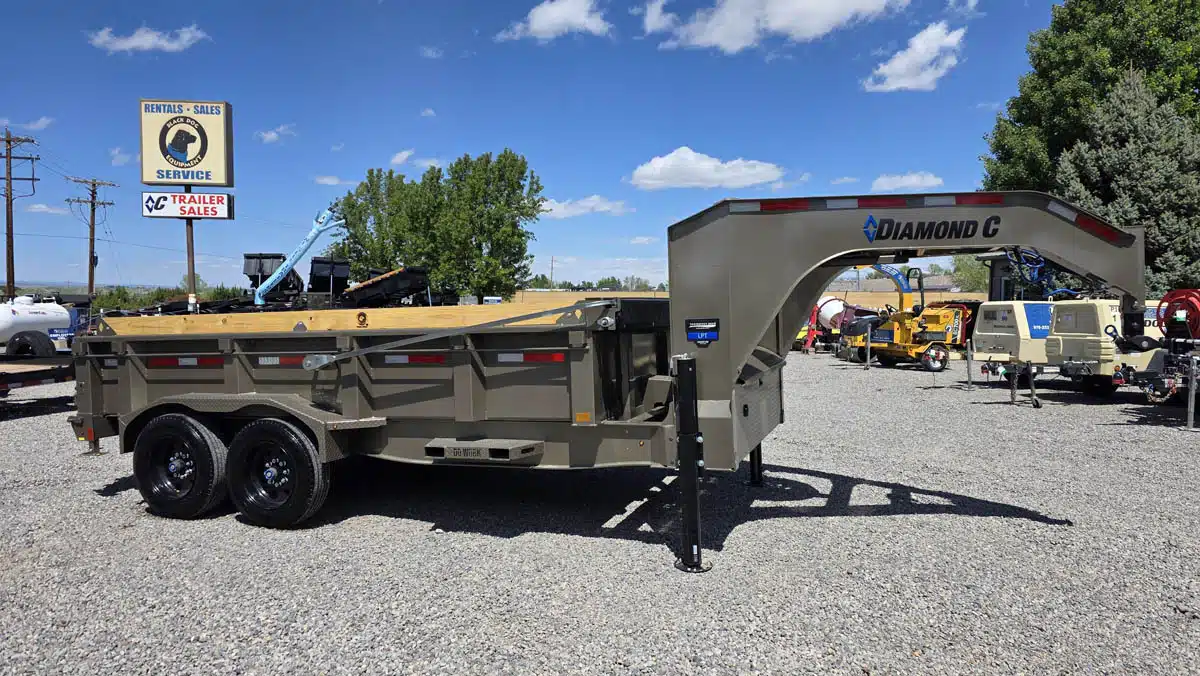

Brand - Diamond C Trailers
Model – LPT-GN208
Length/Width – 14’ x 82”
GVWR – 18,000 lbs.
Dry Weight – 6100 lbs.
Payload – 11,900 lbs.
Axles – (2) 8K Drop Axles, Oil Bath
Axles – Straight Axles (82” Wide Frame and +4” Ground Clearance)

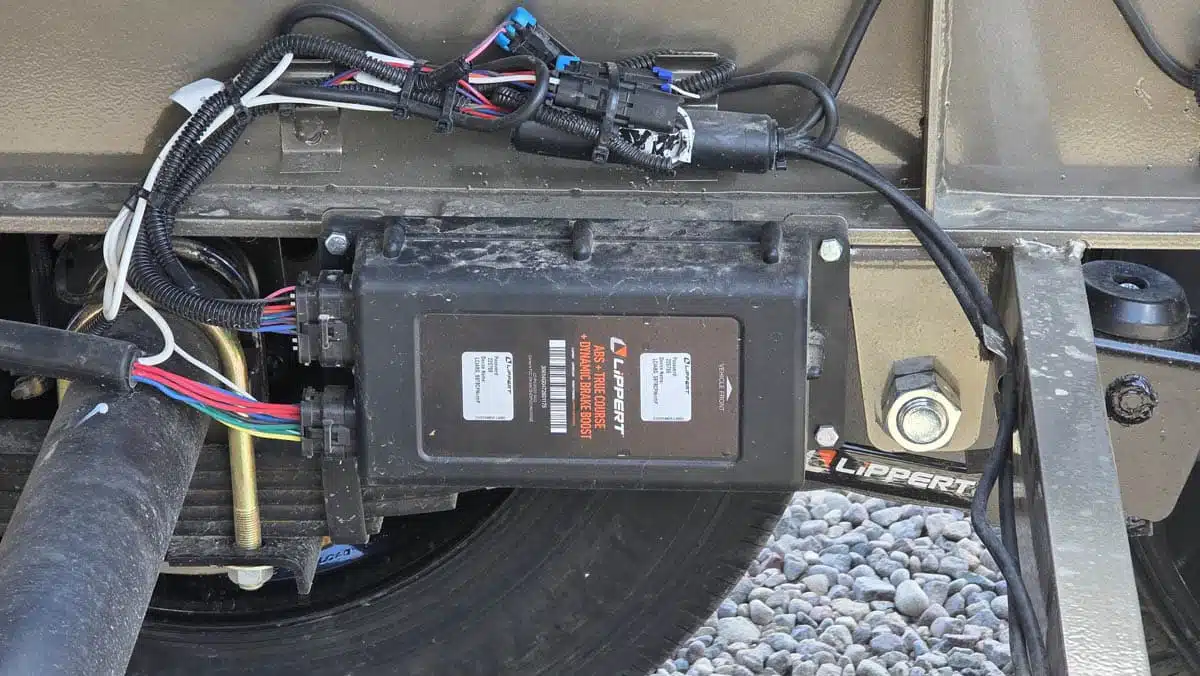

Brakes – Electric Drum with ABS (Anti-Lock Brakes)

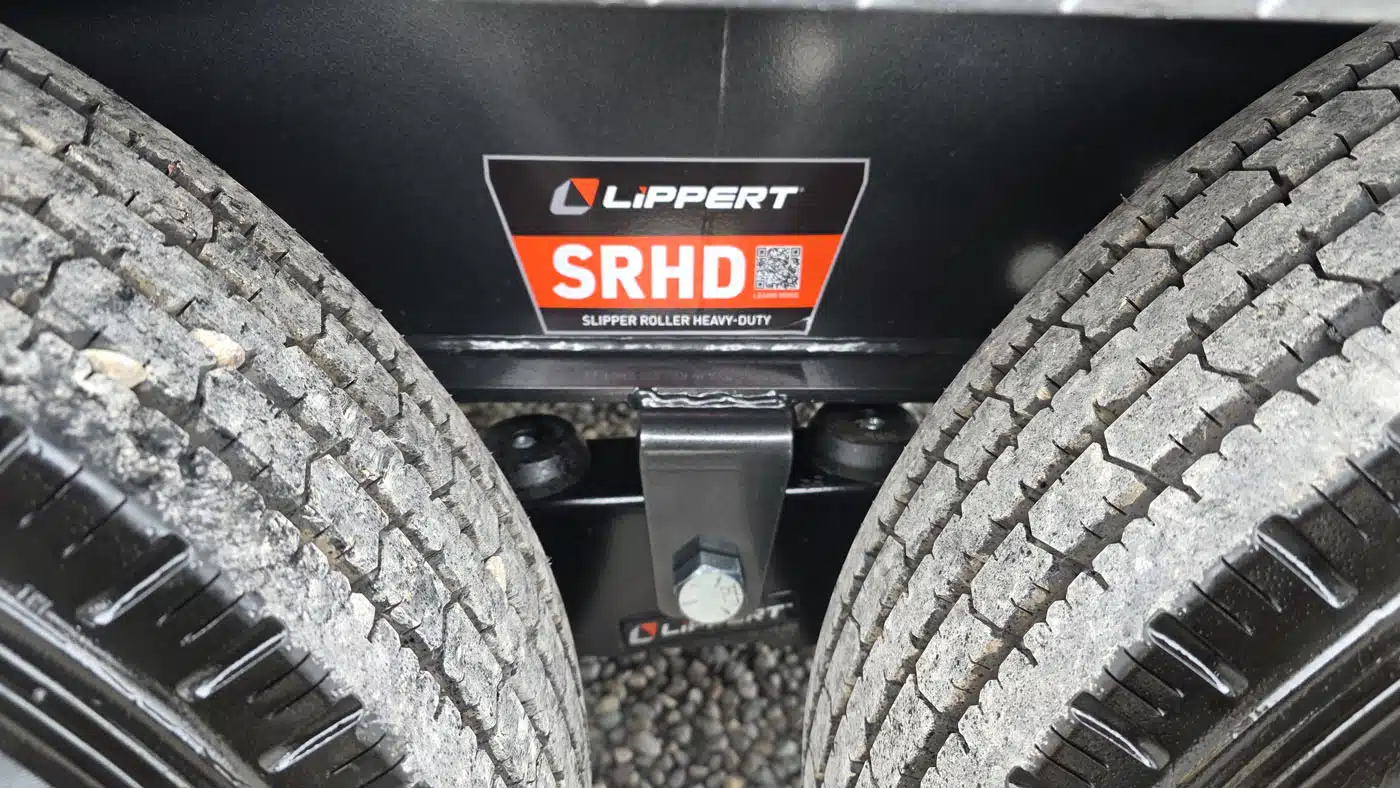

Suspension – Slipper Roller Springs

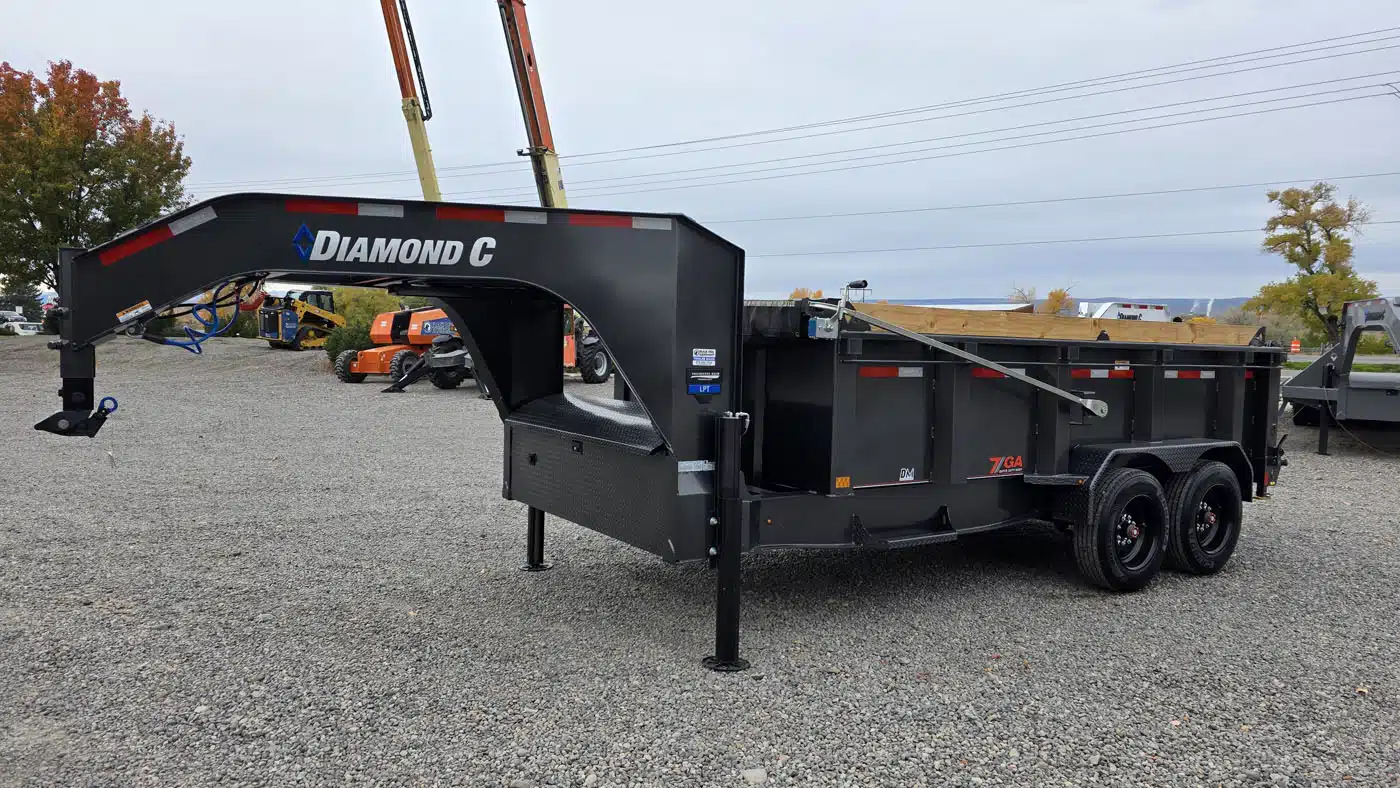

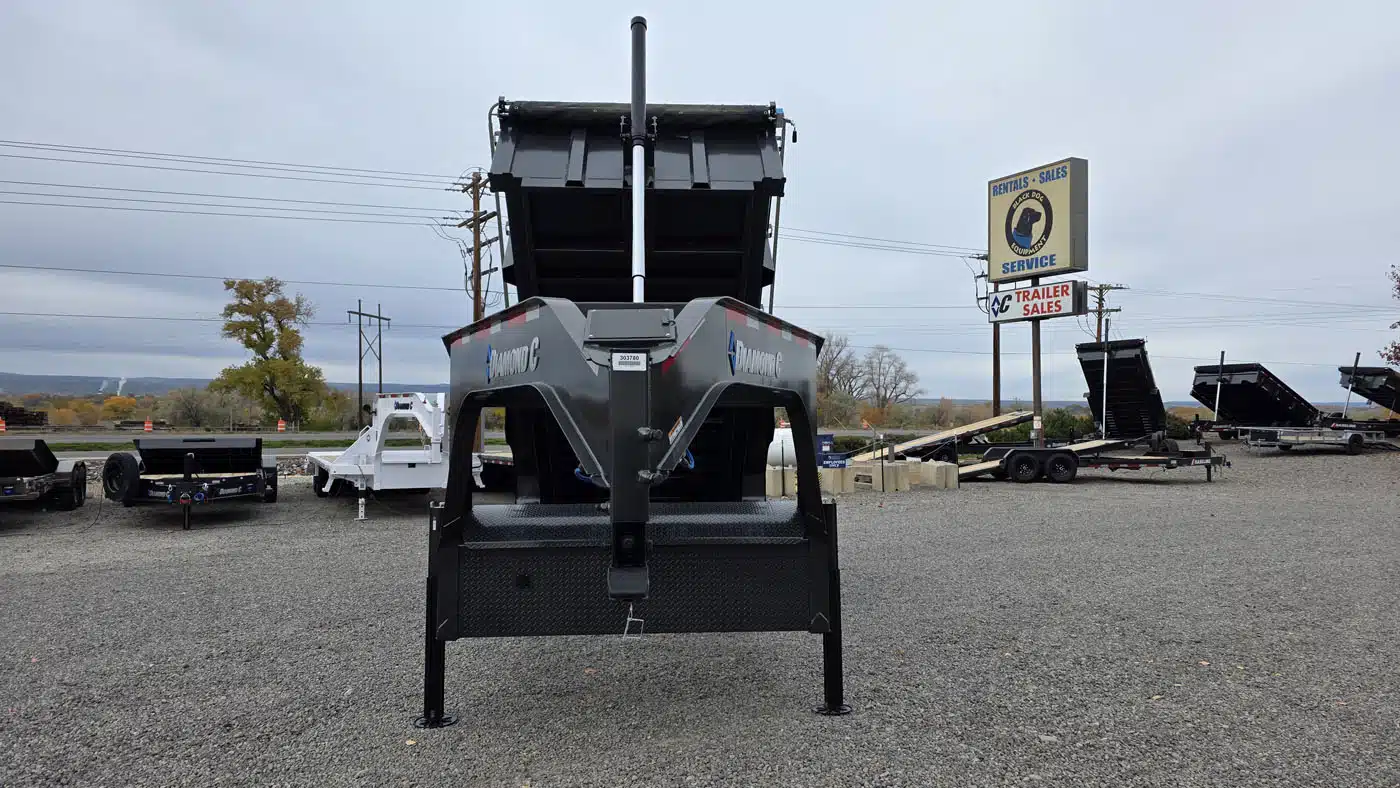

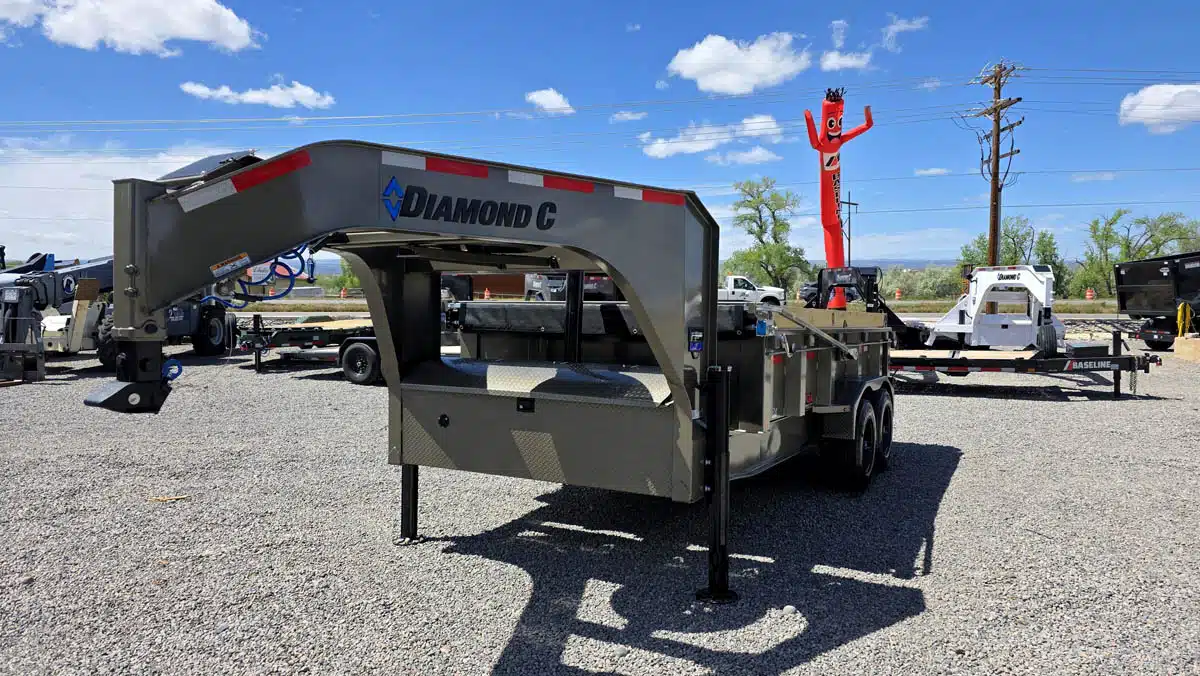

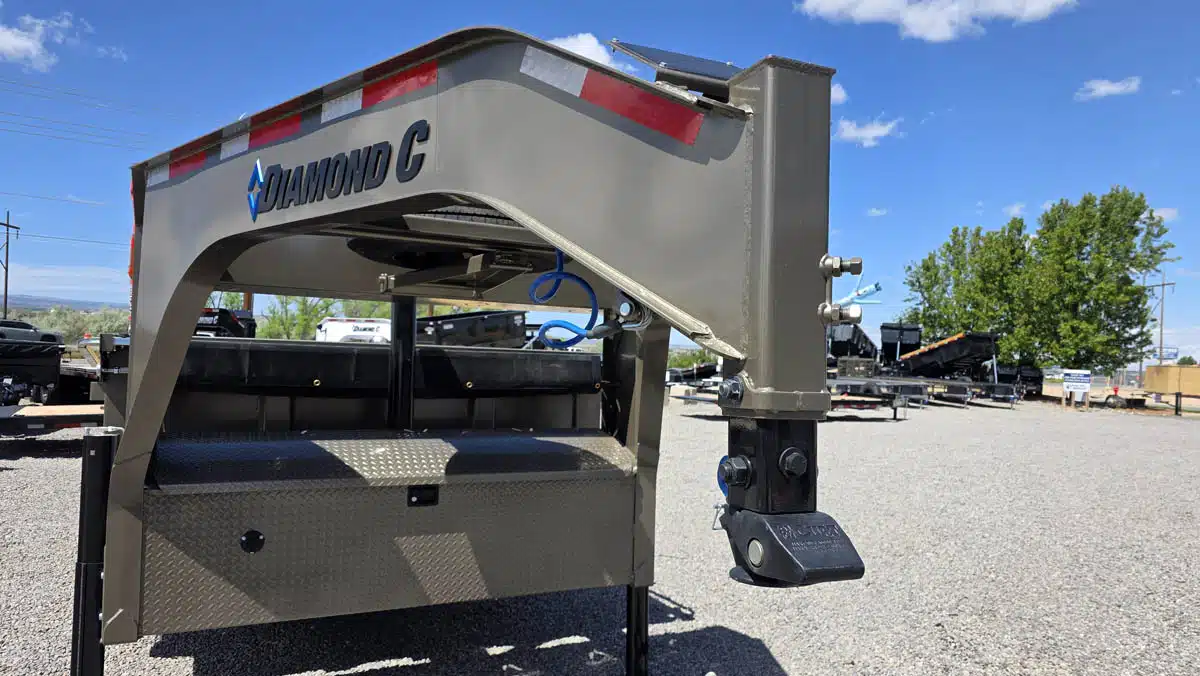

Pull Type – 12” Engineered Gooseneck Package
Dump Main Frame – Engineered Beam Frame
Dump Body Frame – 5” x 2” x 3/16” Rectangle Tube

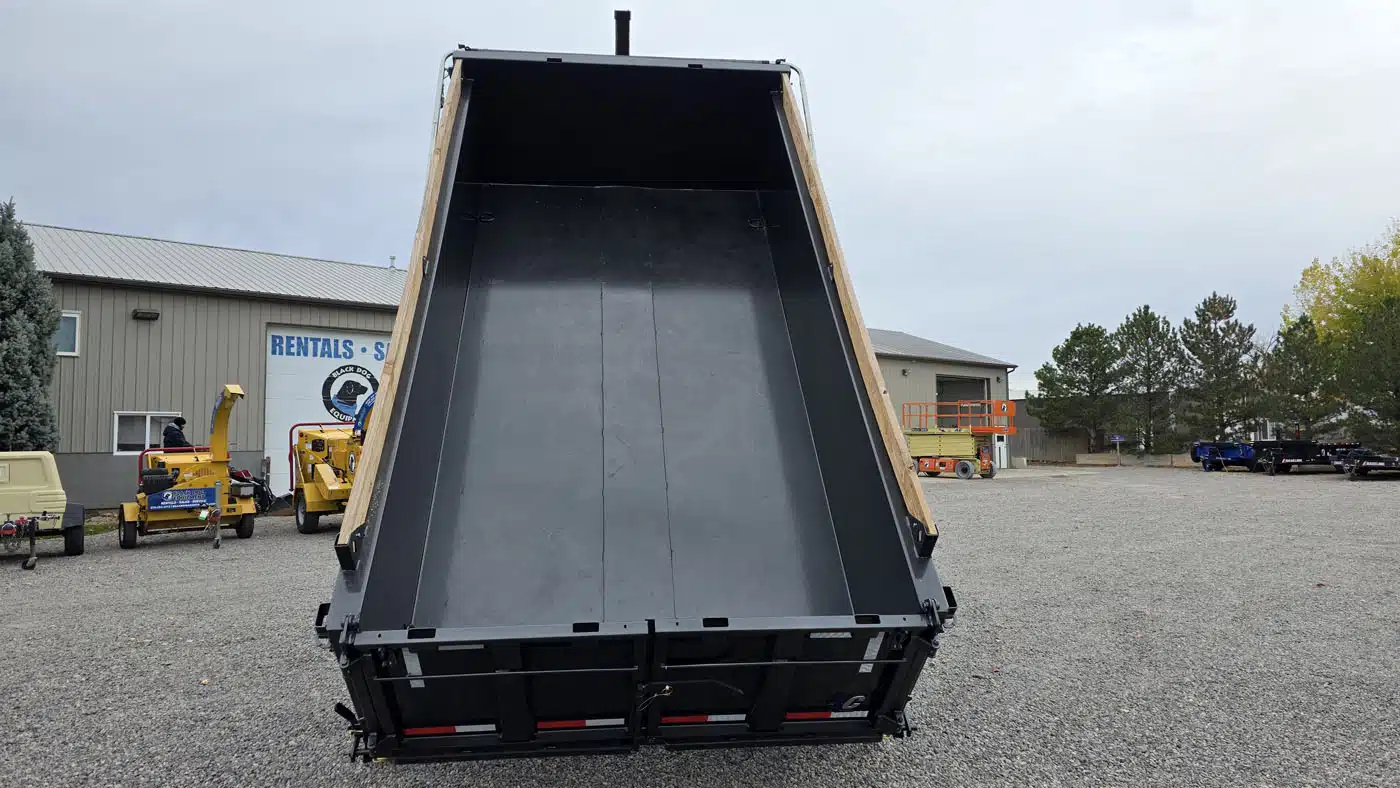

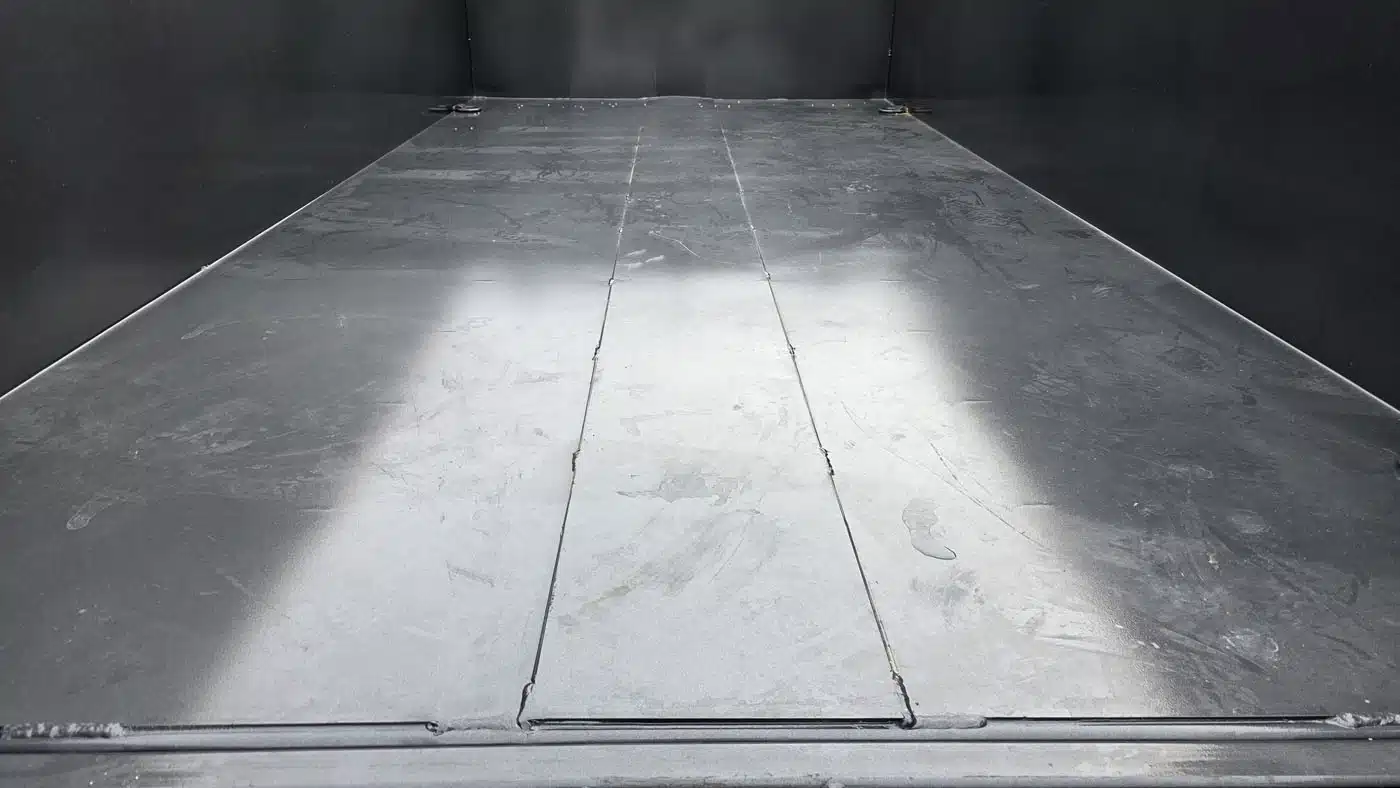

Body Thickness – 7ga (3/16”) Body, Floor, & Sides (UPGRADE)
Sides - 24” Tall Sides (7ga)
Side Extensions – Board Brackets w/ Raised Front (PSE)

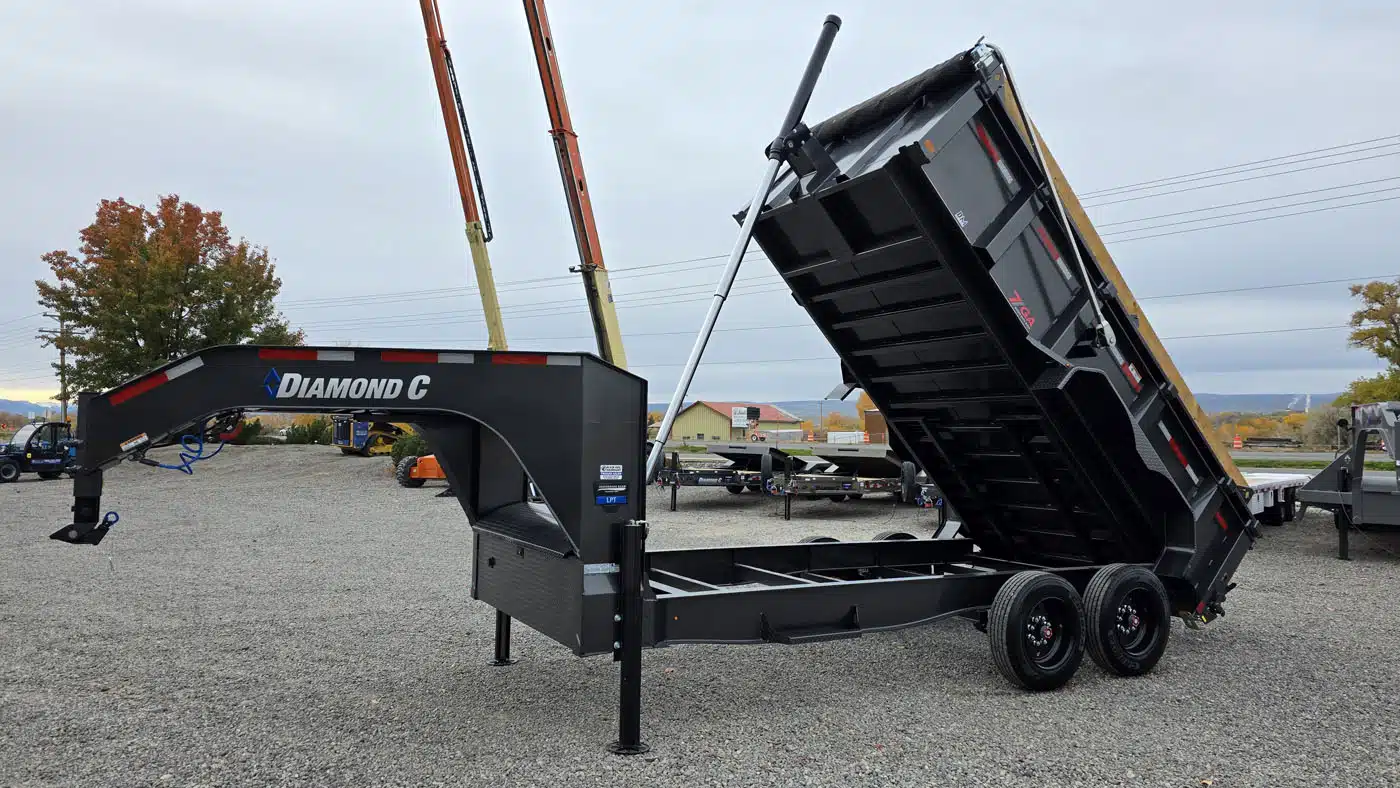

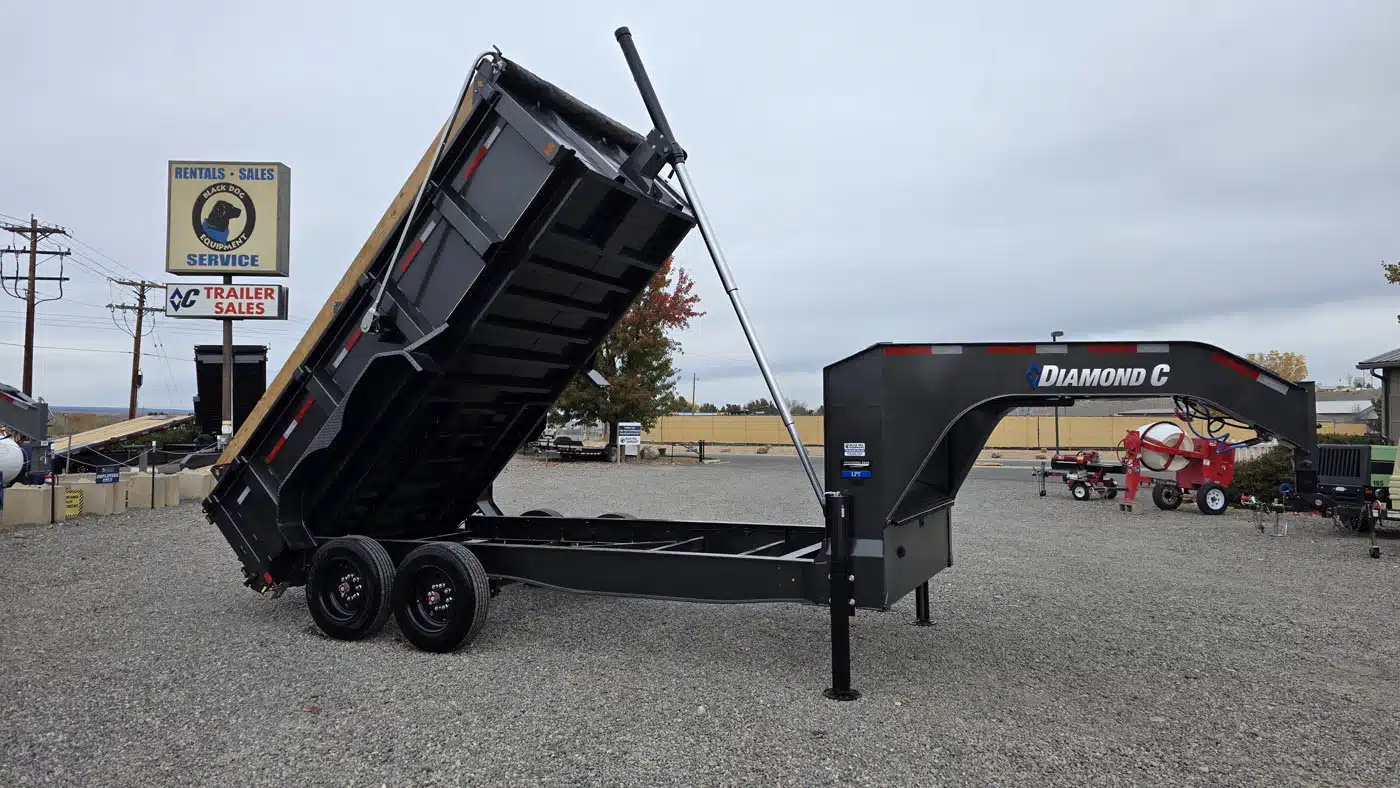

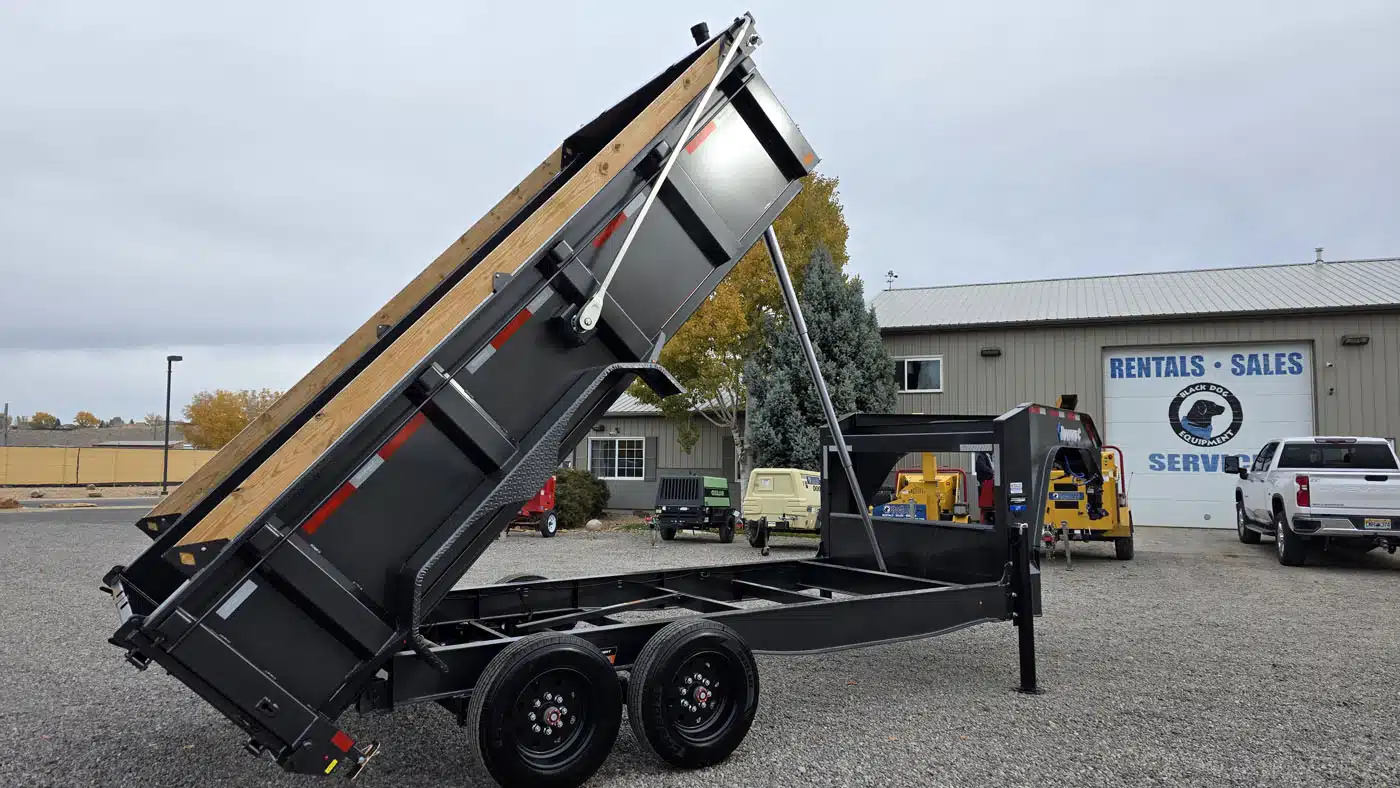

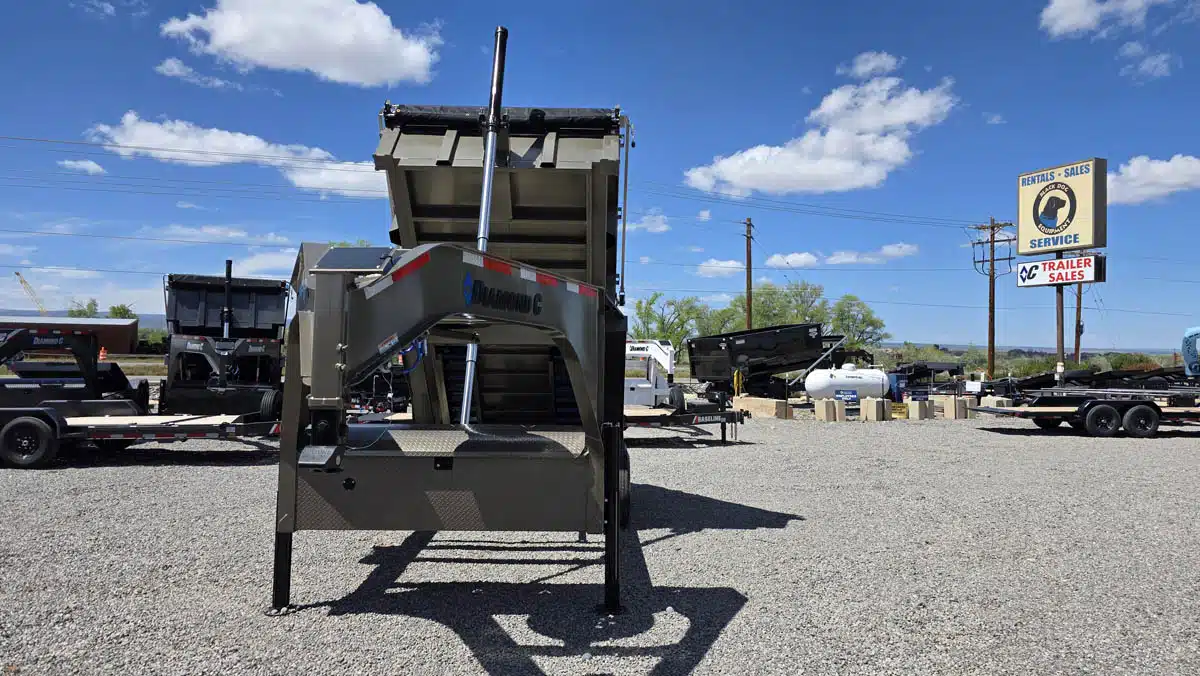

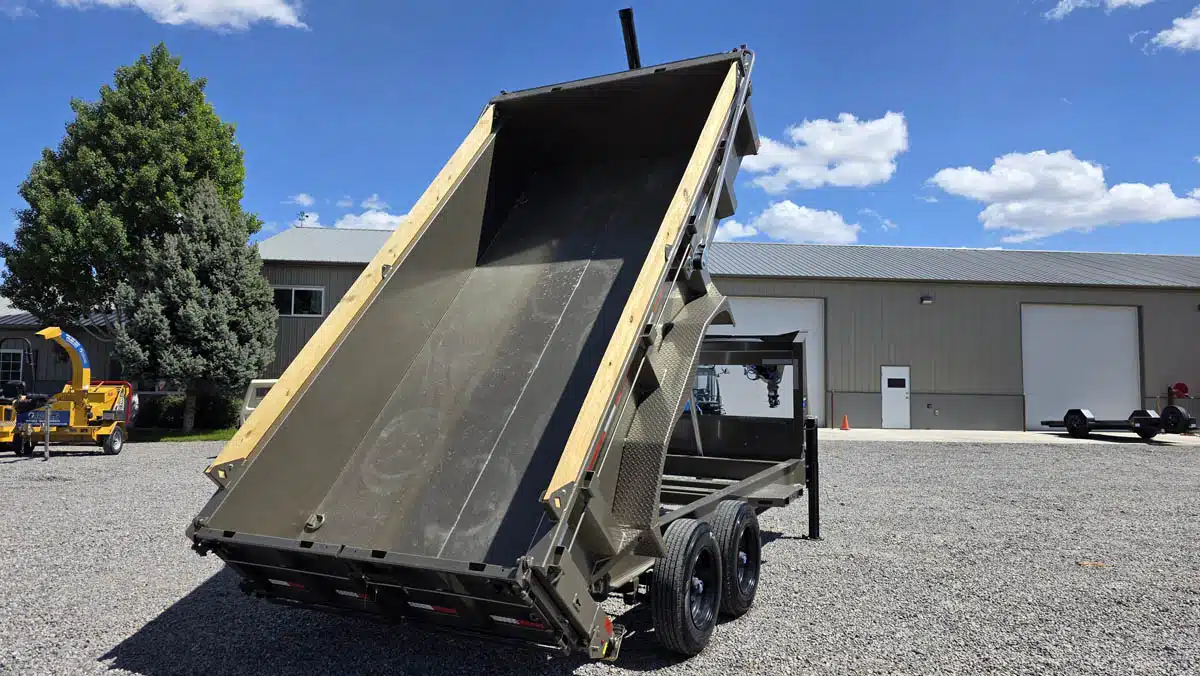

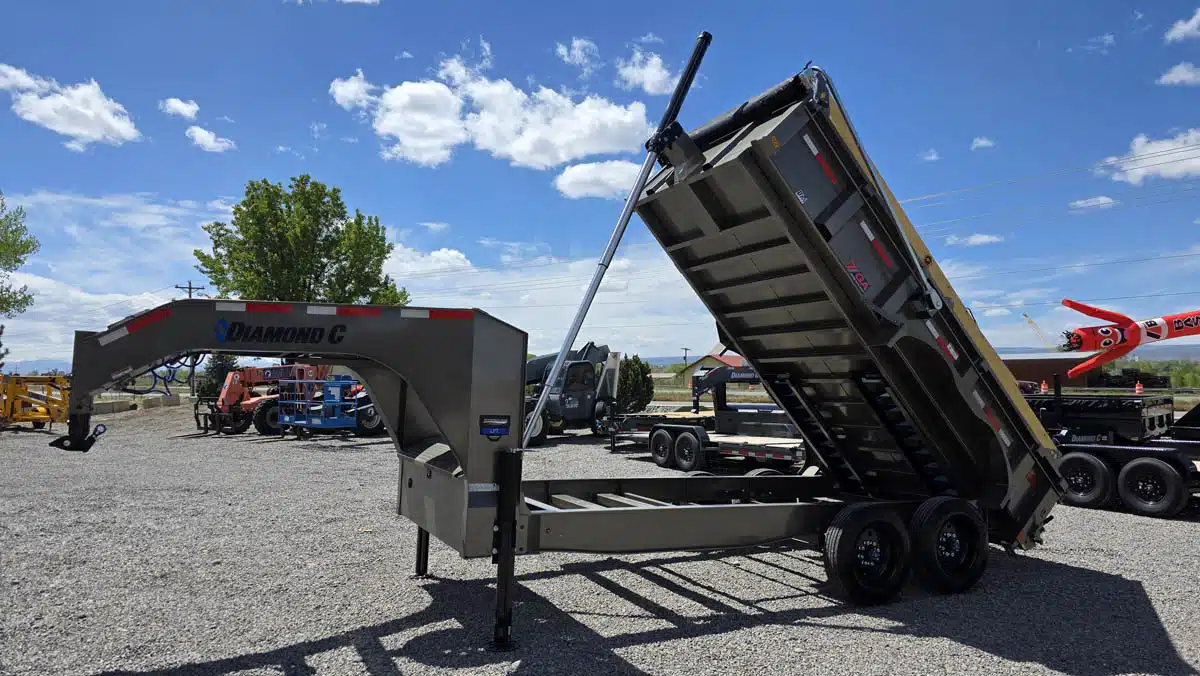

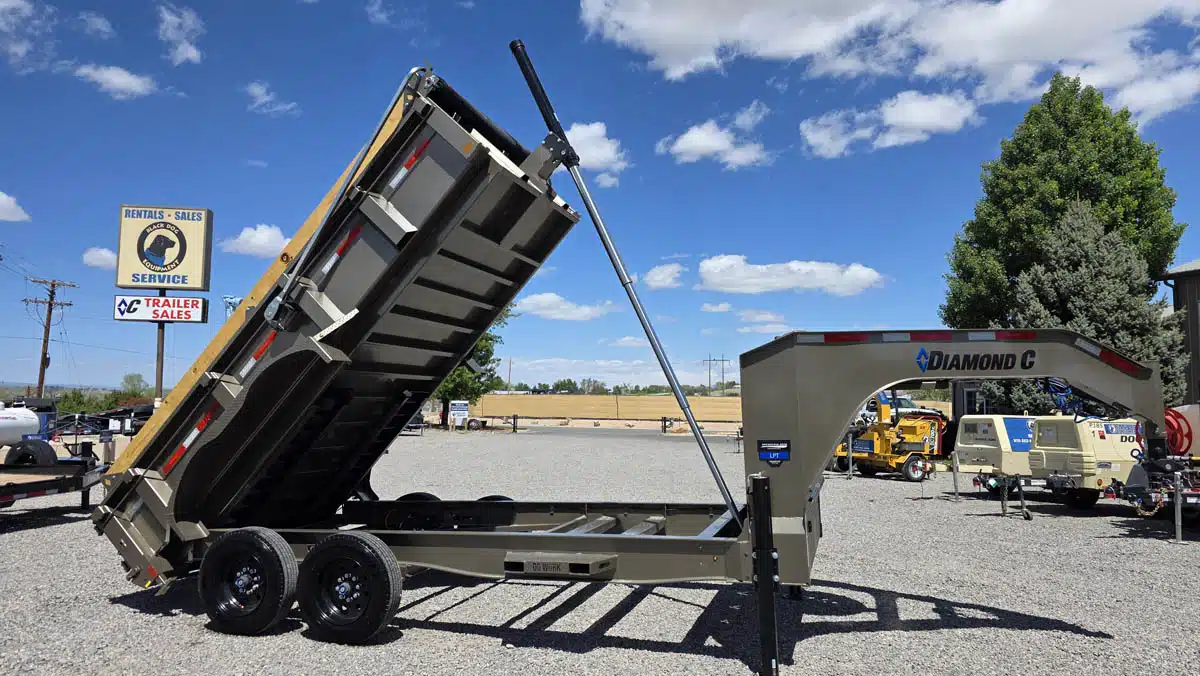

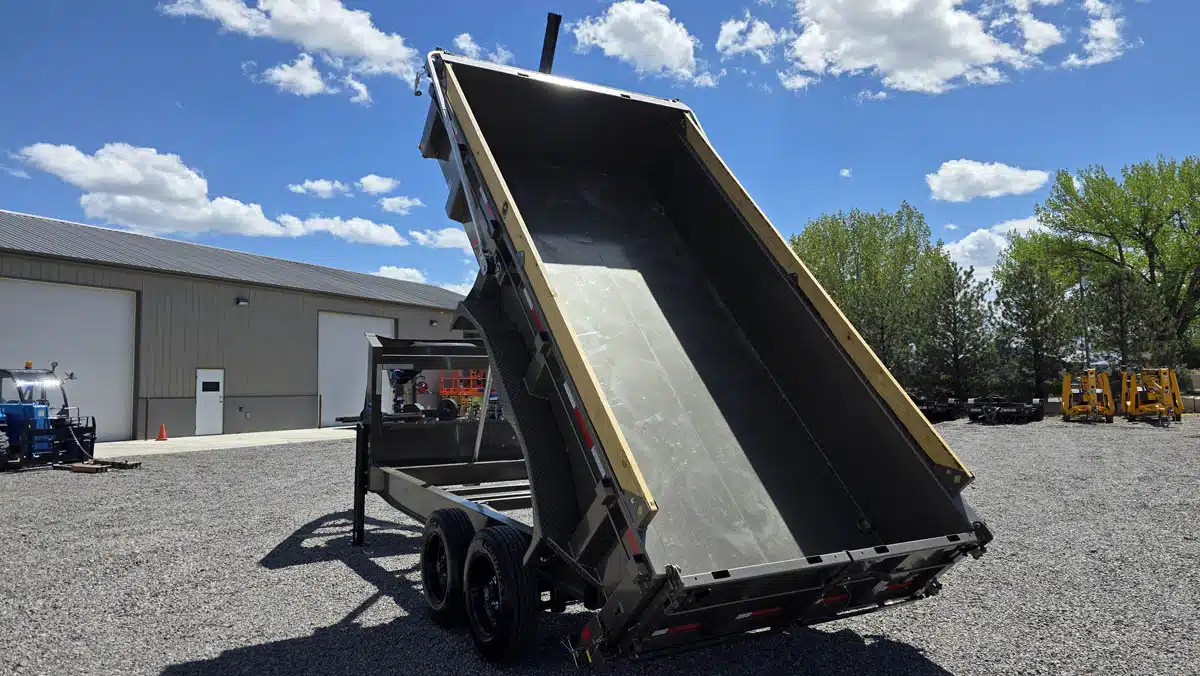

Hoist – 3 Stage Telescopic Cylinder

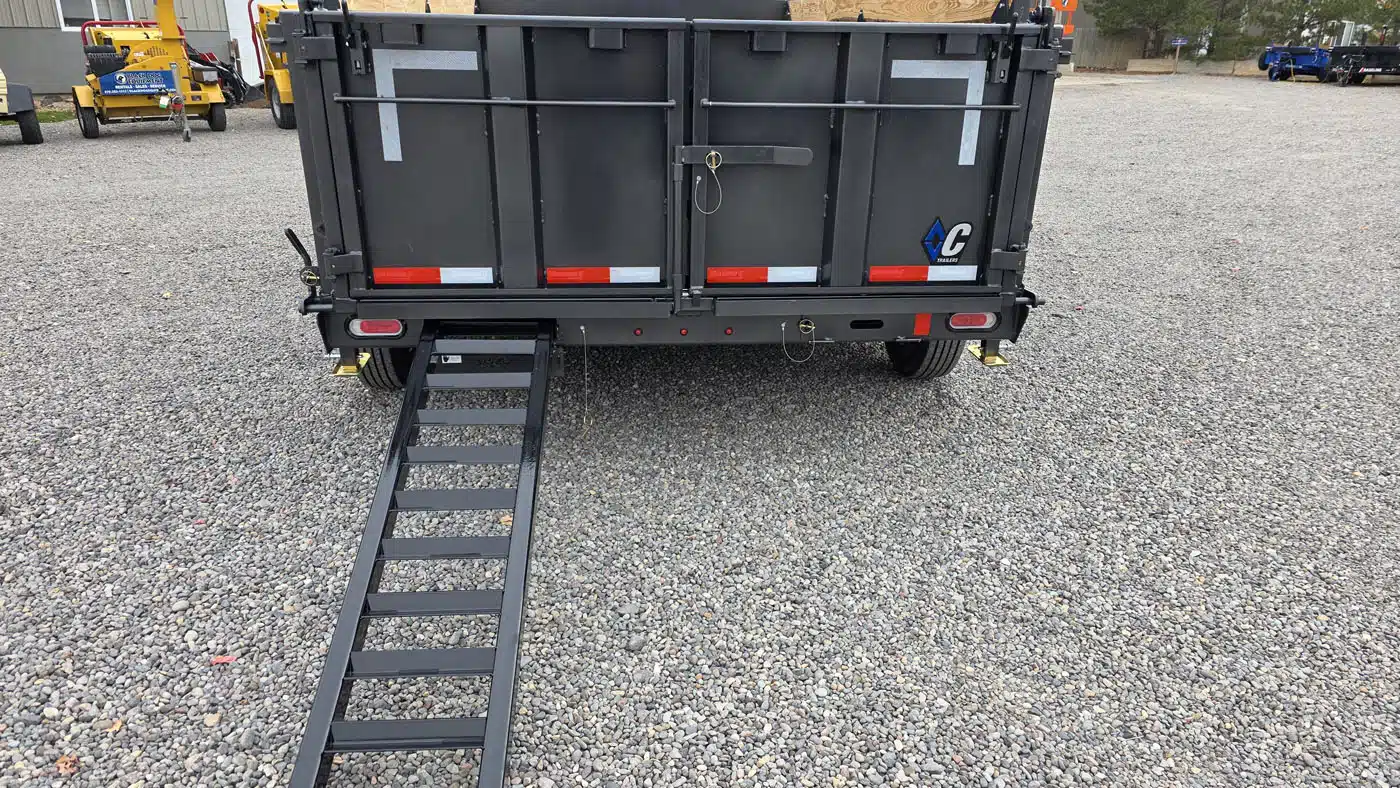

Ramps – HD 78” Rear Slide-In Ramps (3” Channel)

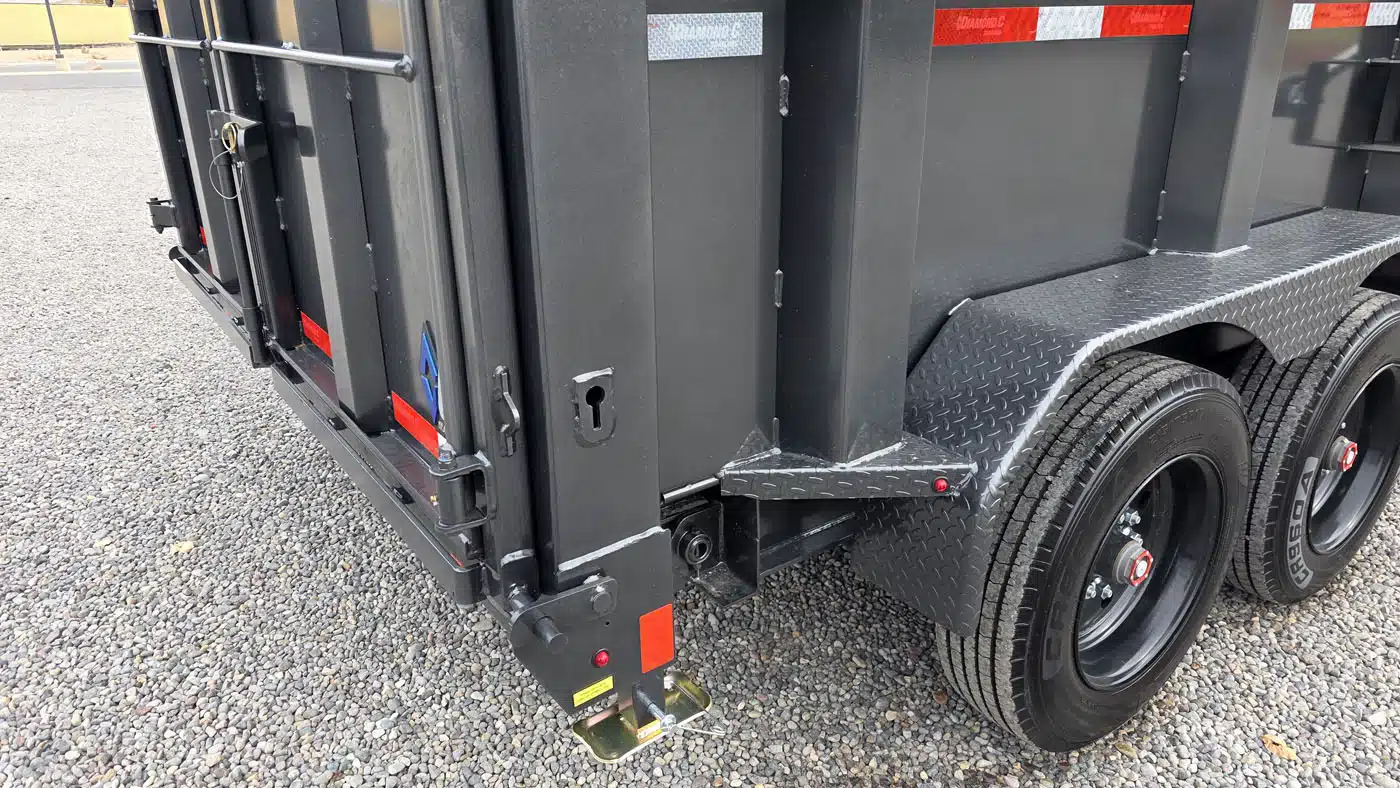

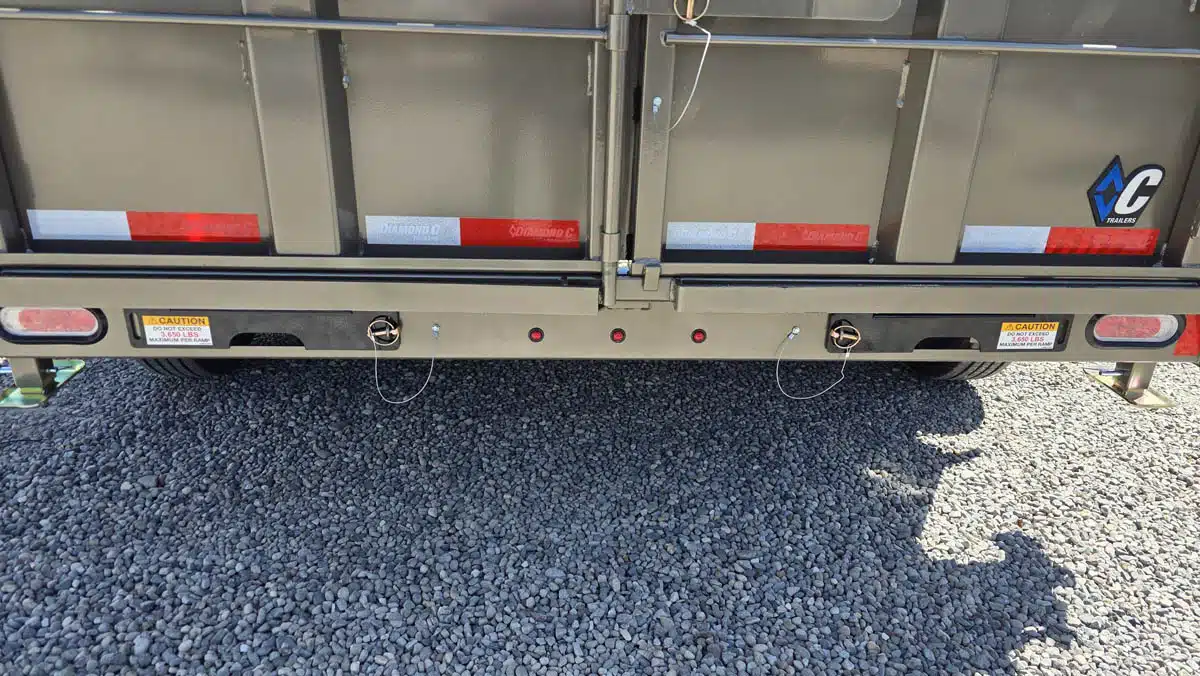

Ramps – Rear Stabilizer Drop Legs (PSE)

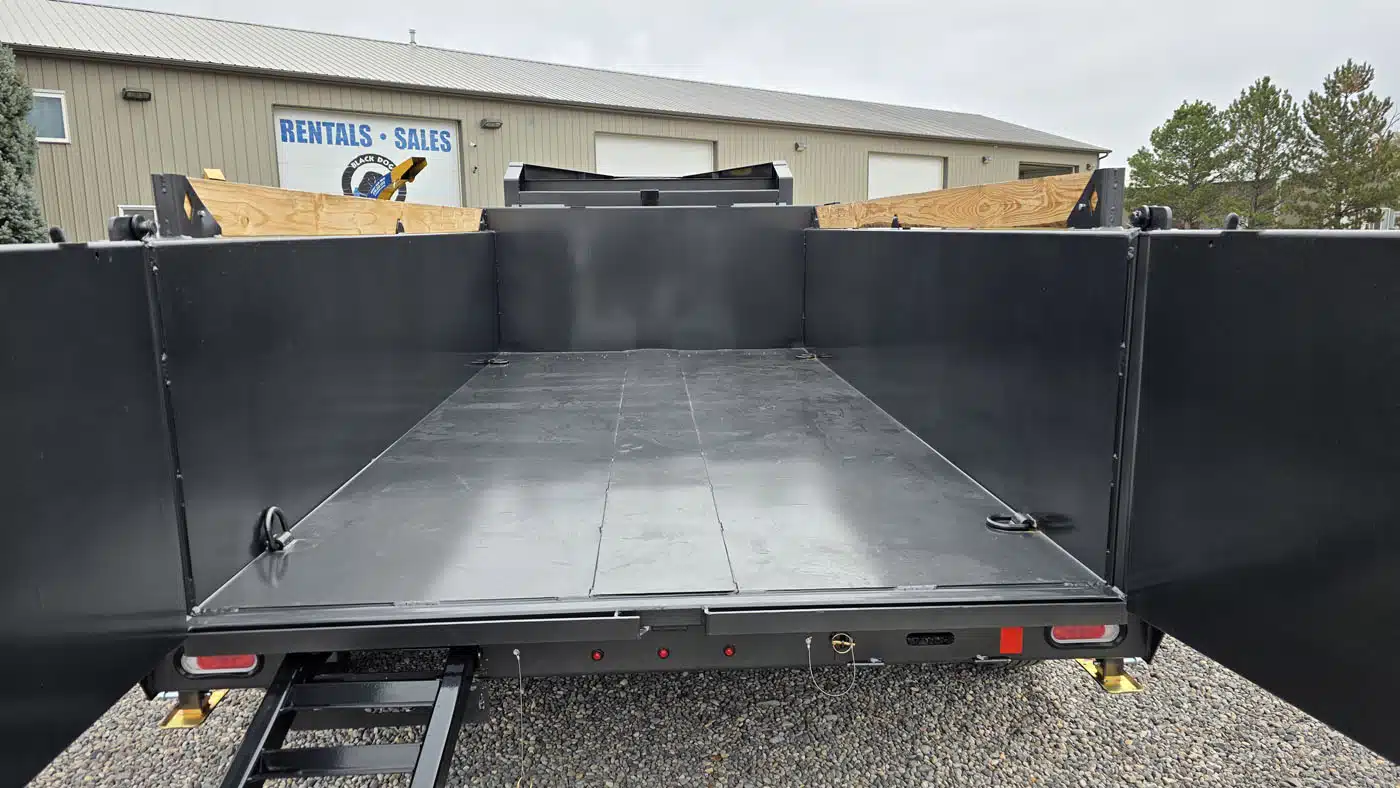

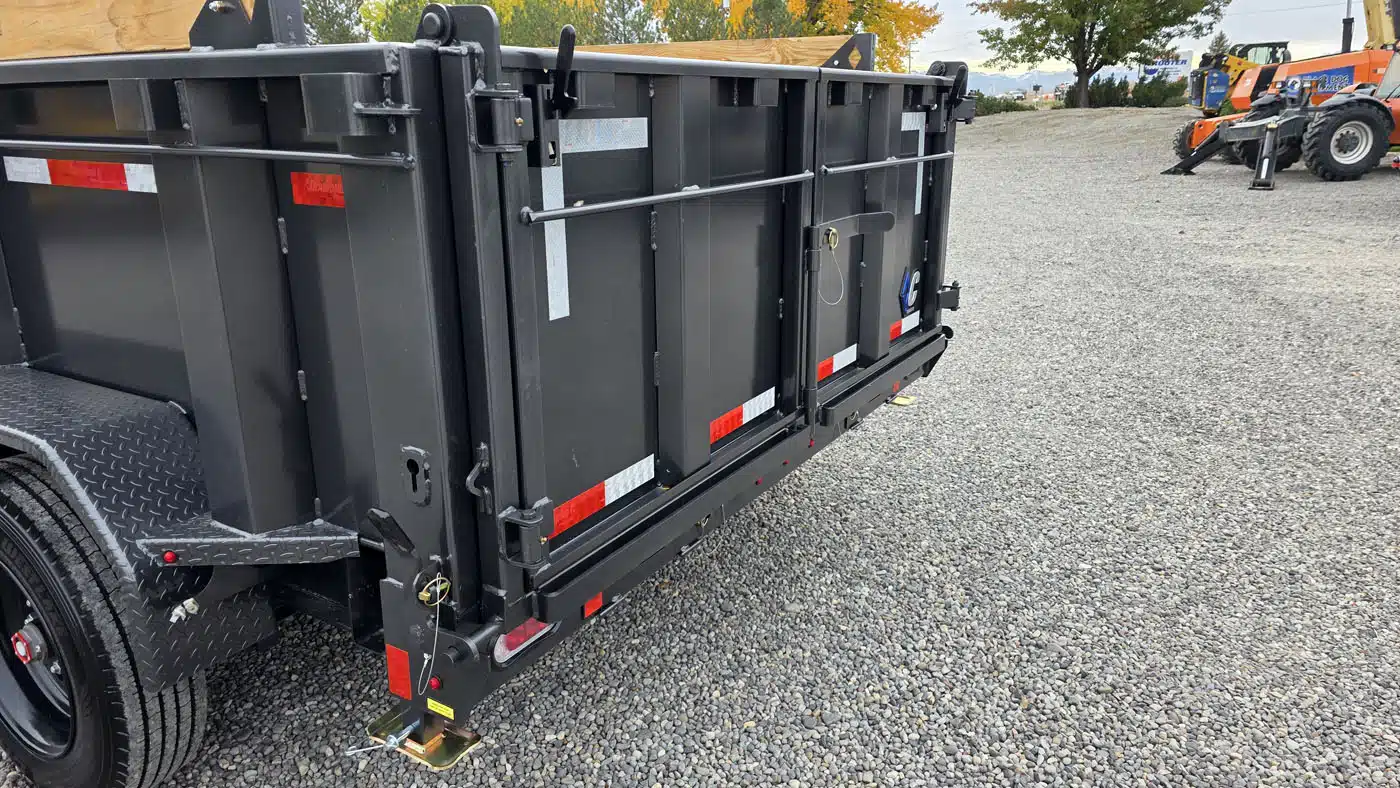

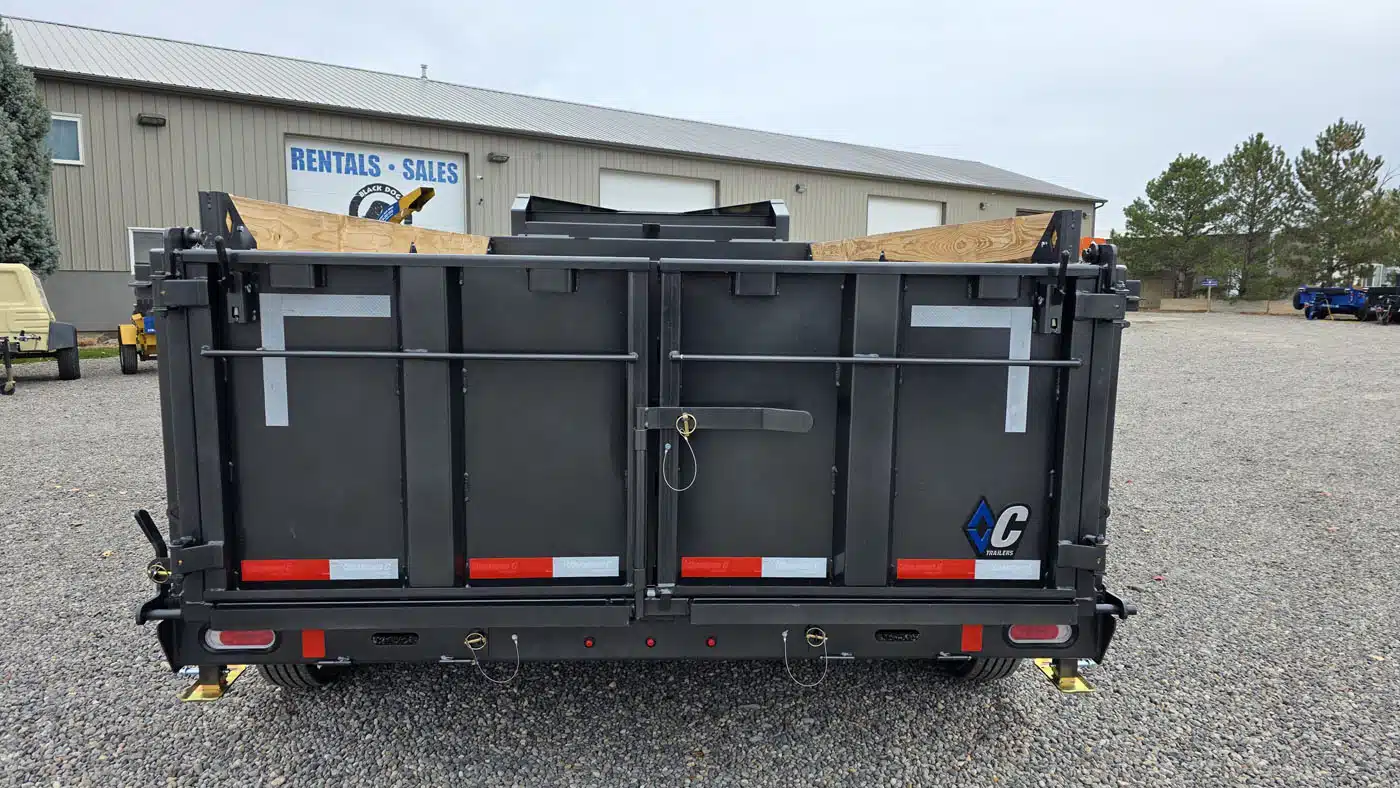

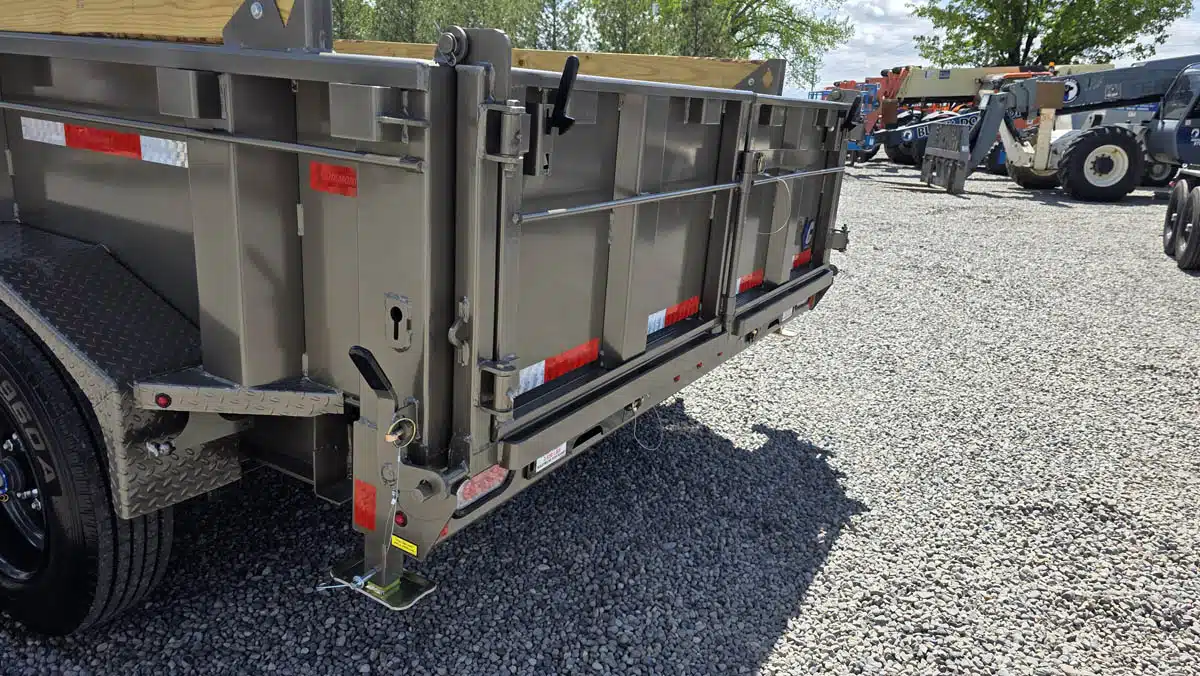

Gate – 3-way gate (with Hold Back System)
Paint – DM Difference Maker Powder Coating System
Paint Color – Mocha Metallic

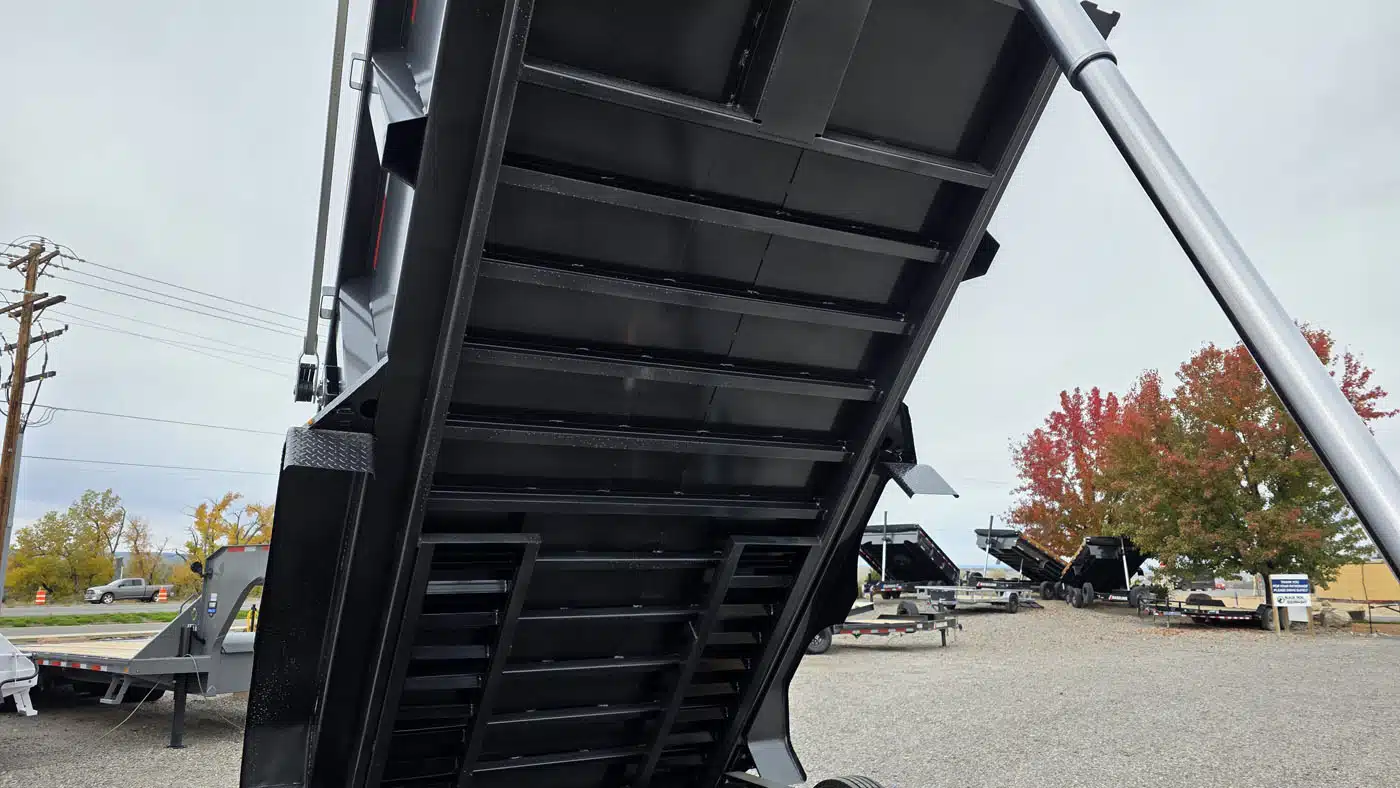

Cross-Members – 3” I-Beam on 12” Centers (UPGRADE)

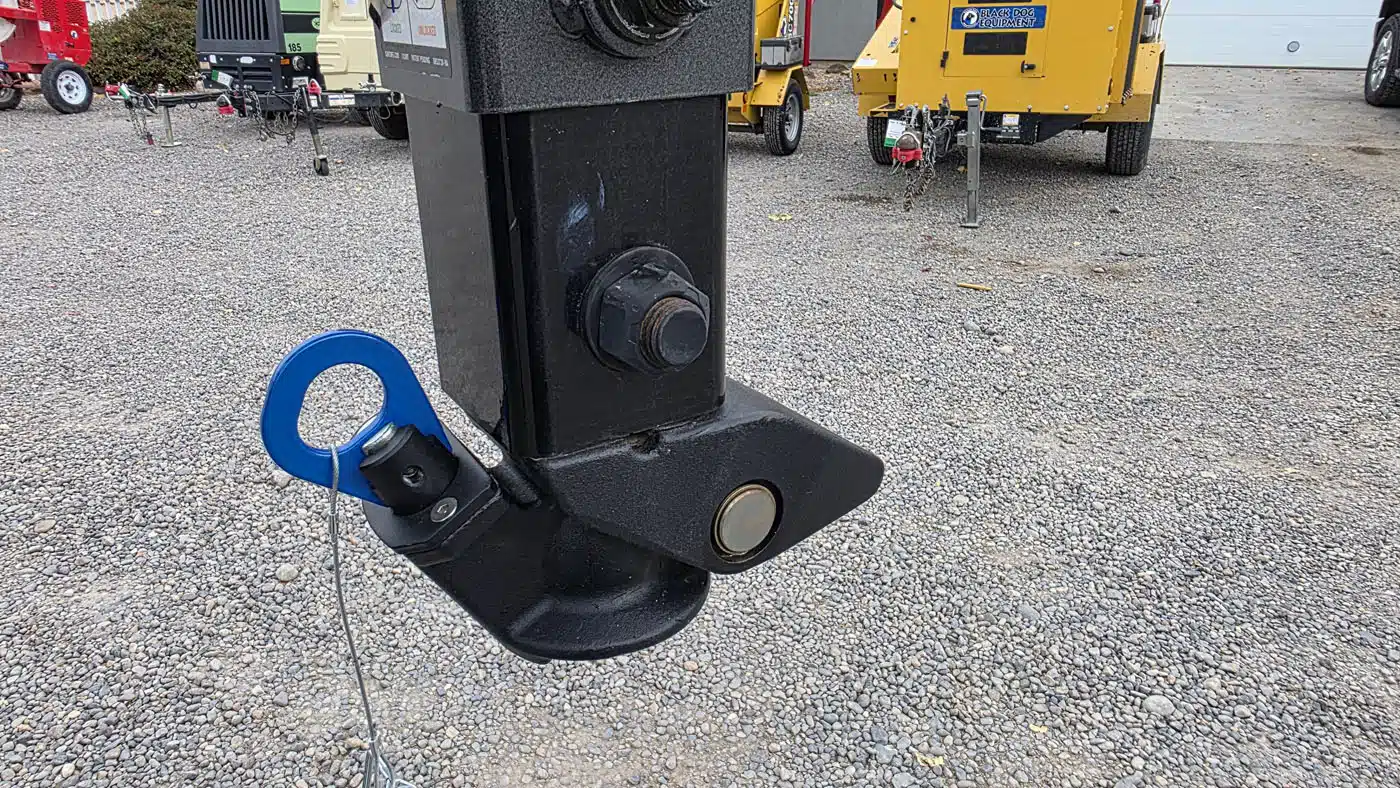

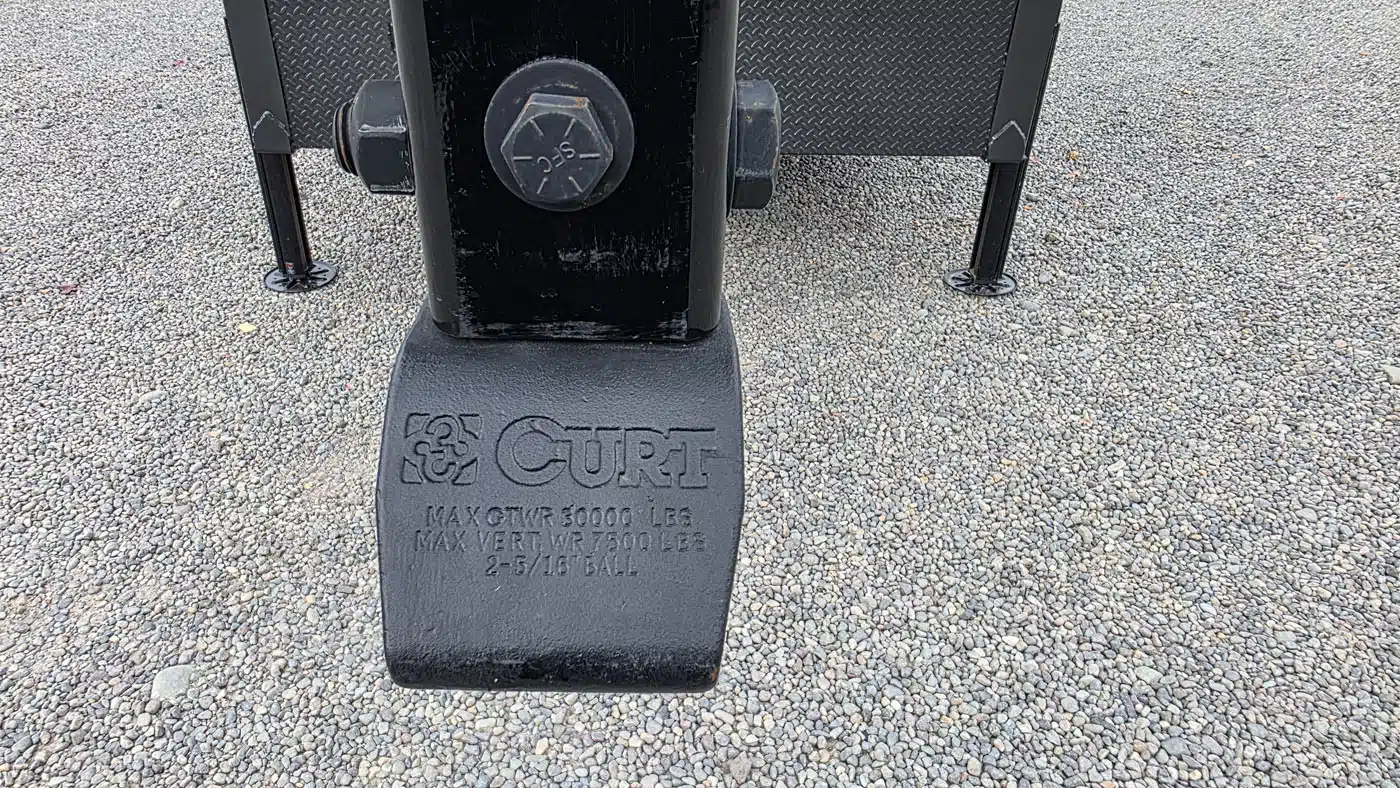

Gooseneck Coupler – 2 5/16” Ball, Curt Cushion Coupler
Jack – Dual 20K Hydraulic Jacks (PSE)

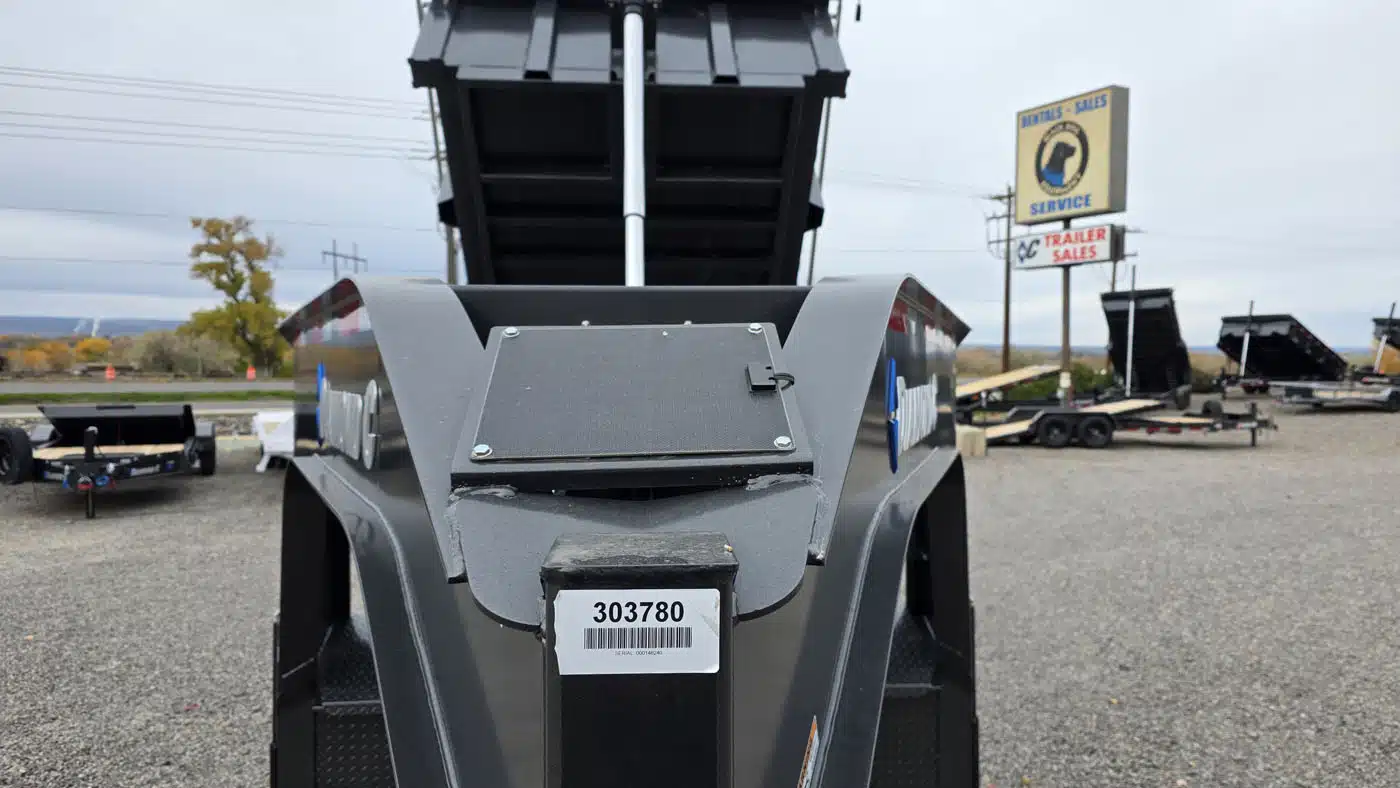

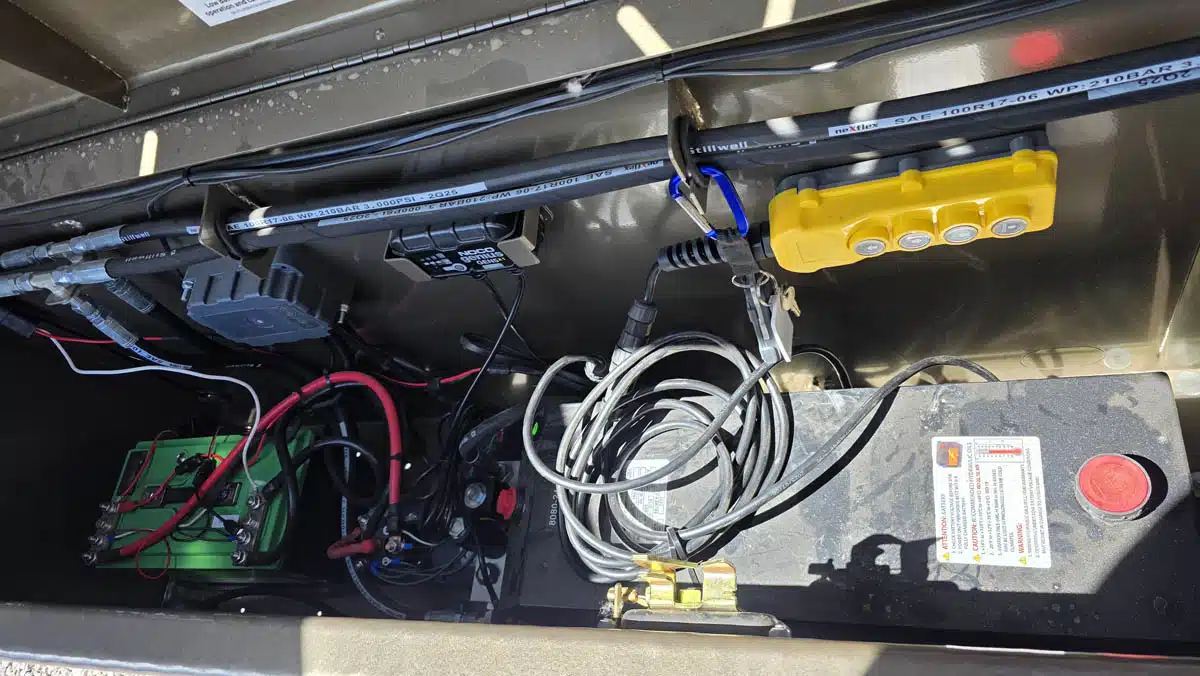

Storage – Full width Diamond Plate Neck Box

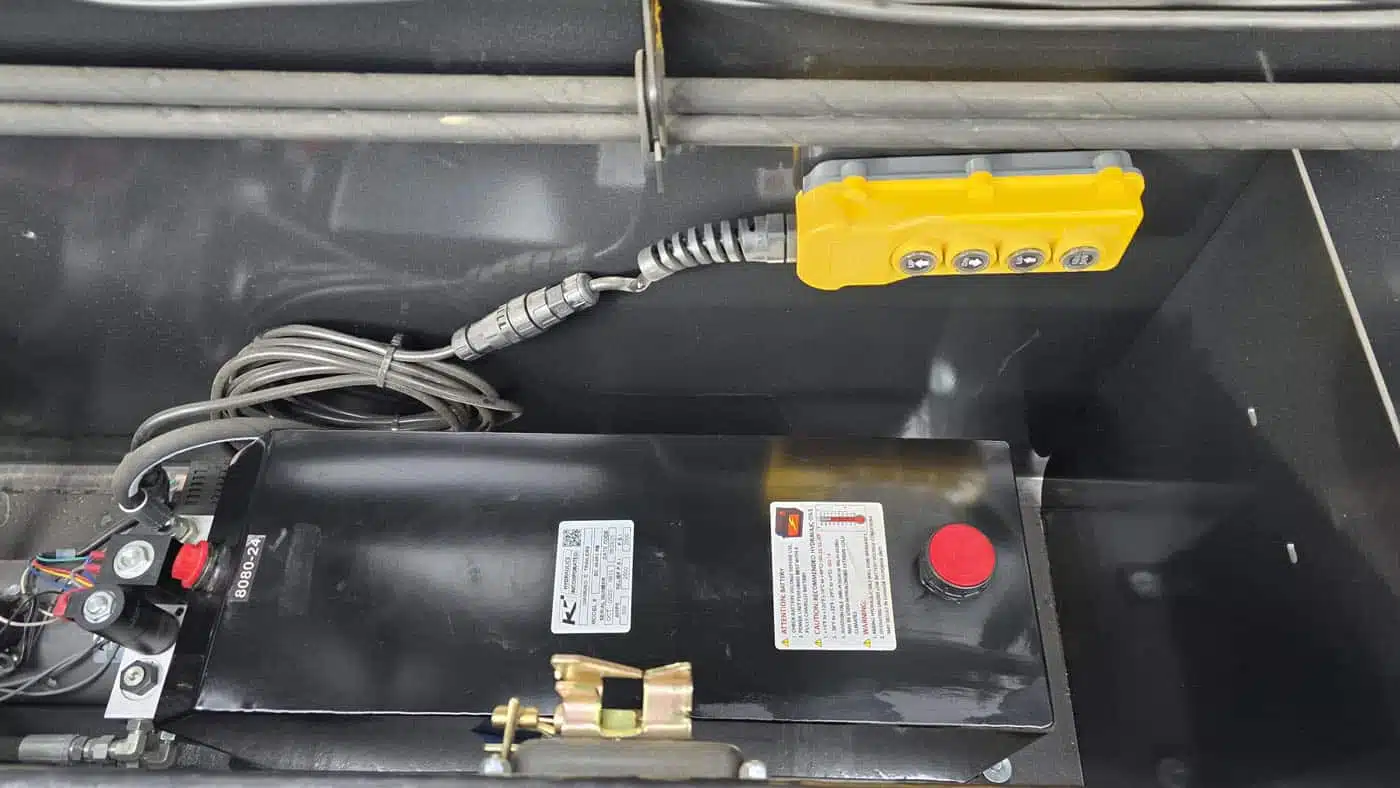

Hydraulic Power – Power-Up, Gravity Down (with High Flow KTI Pump)
Bed Control – Corded Remote, 14’

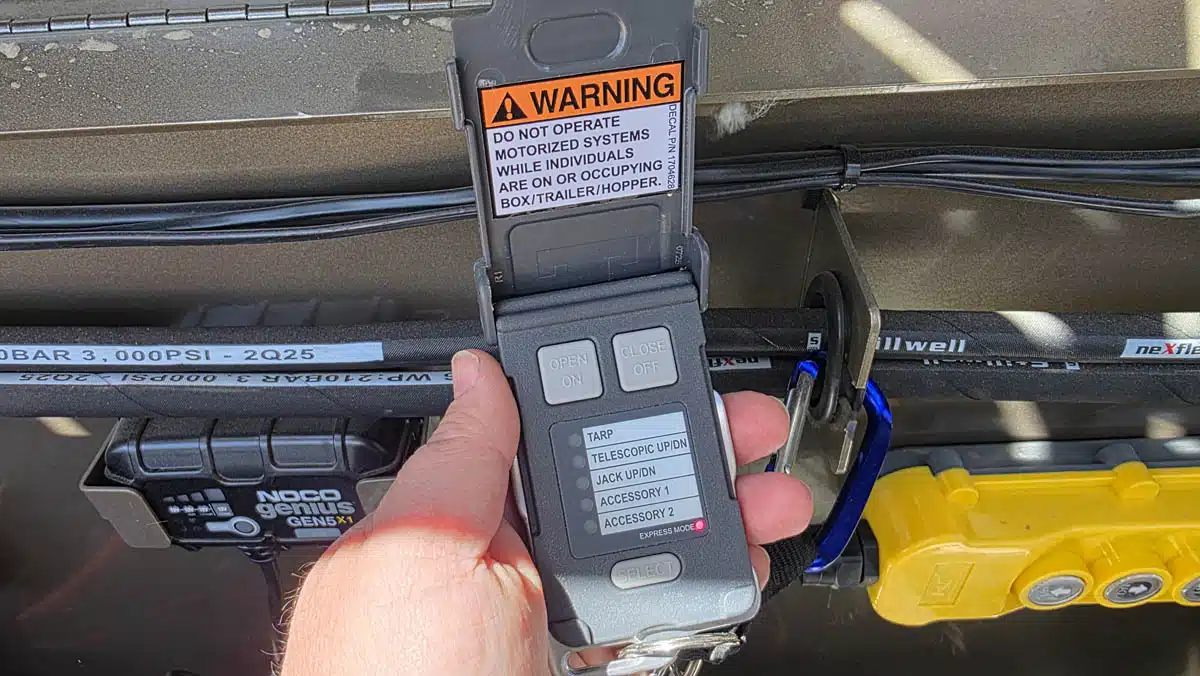

Bed Control – Shurco Wireless Remote (PSE)

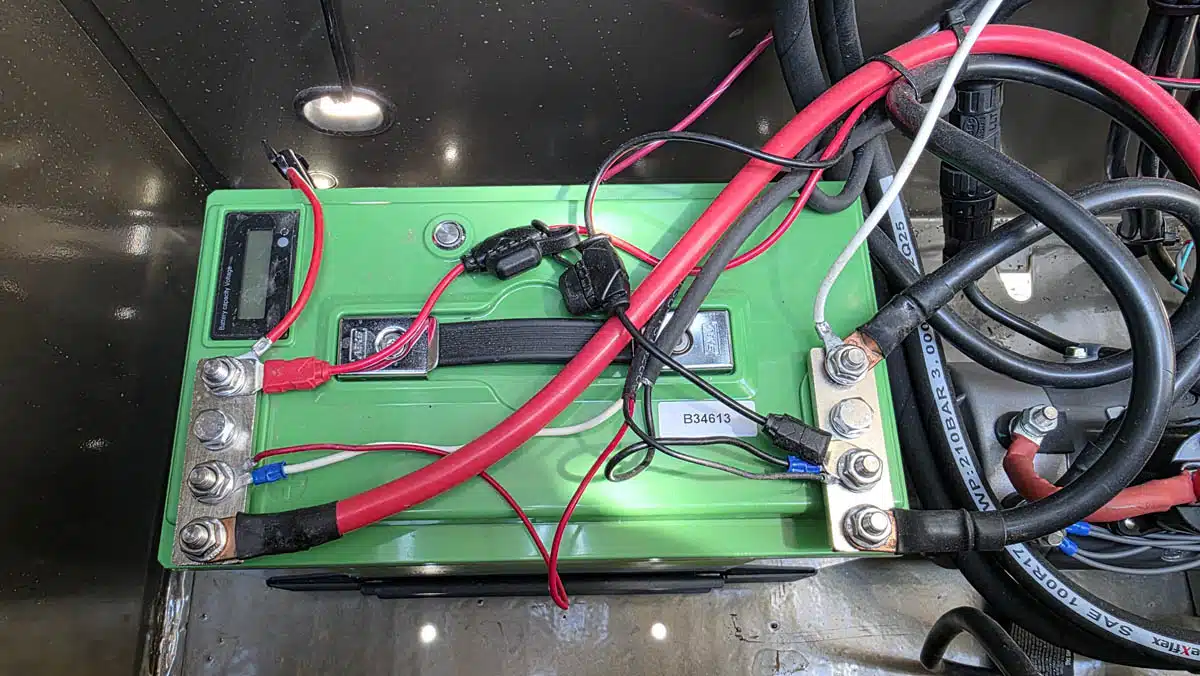

Battery/Charger – Lithium Battery (UPGRADE)
Battery/Charger – Solar Charging System, 7 watts (UPGRADE)

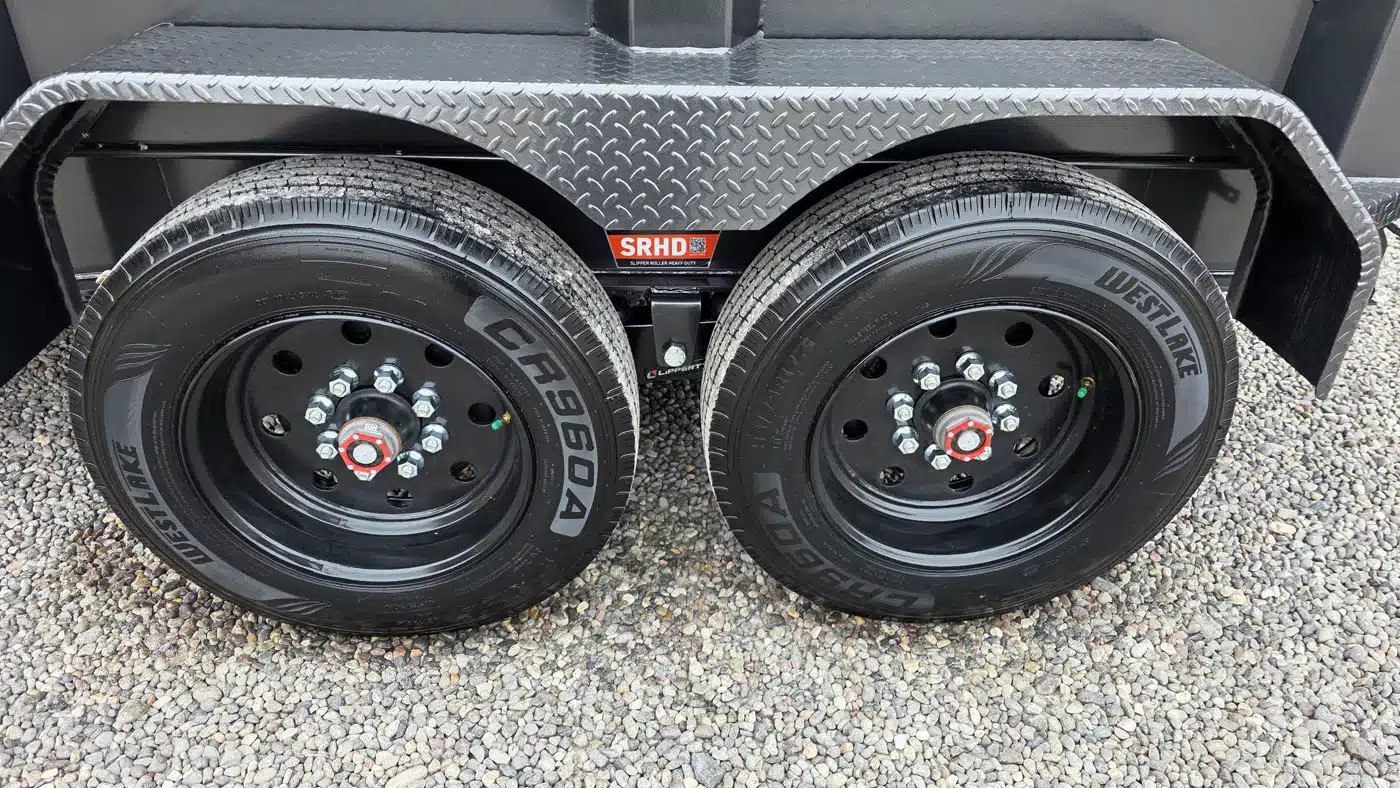

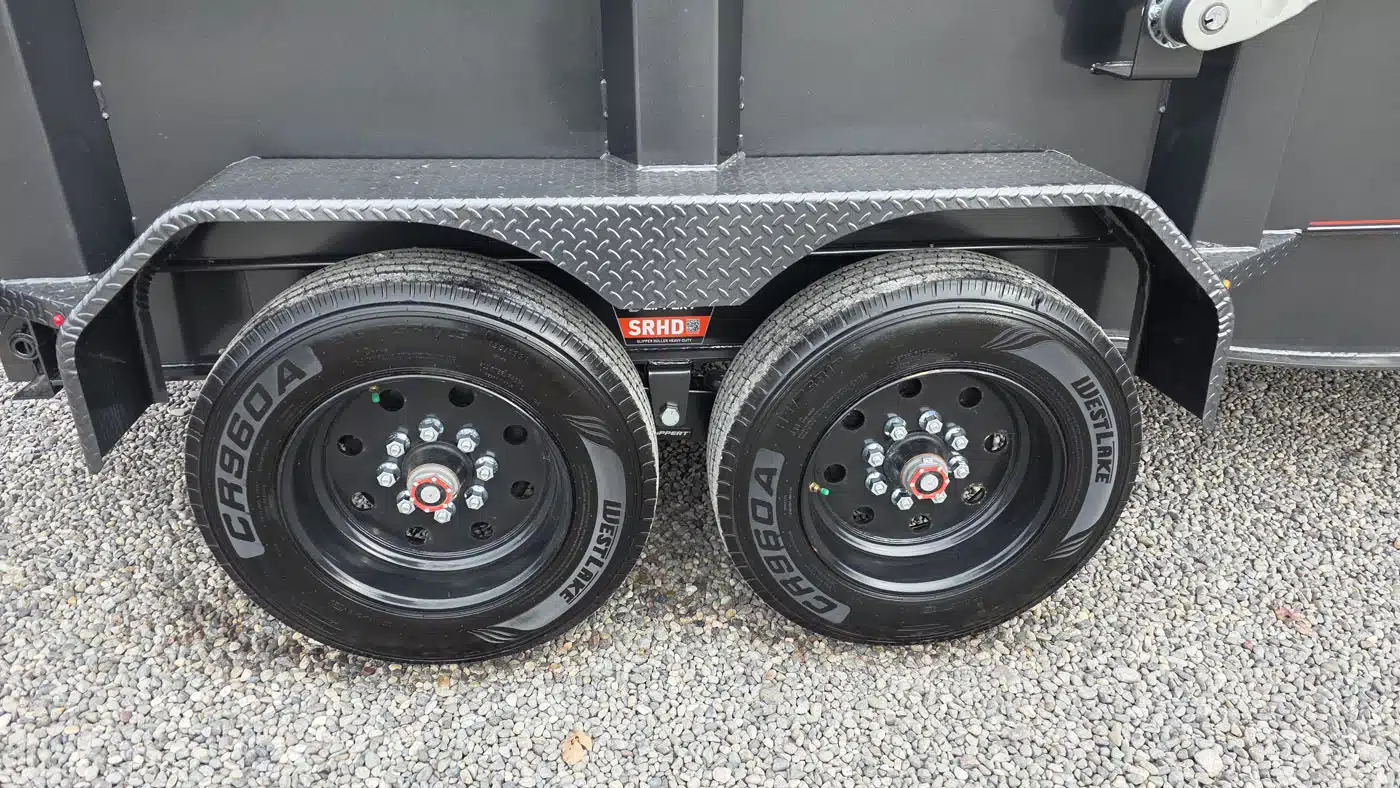

Fenders – 3/16” Diamond Plate Fenders, Heavy Duty (PSE)

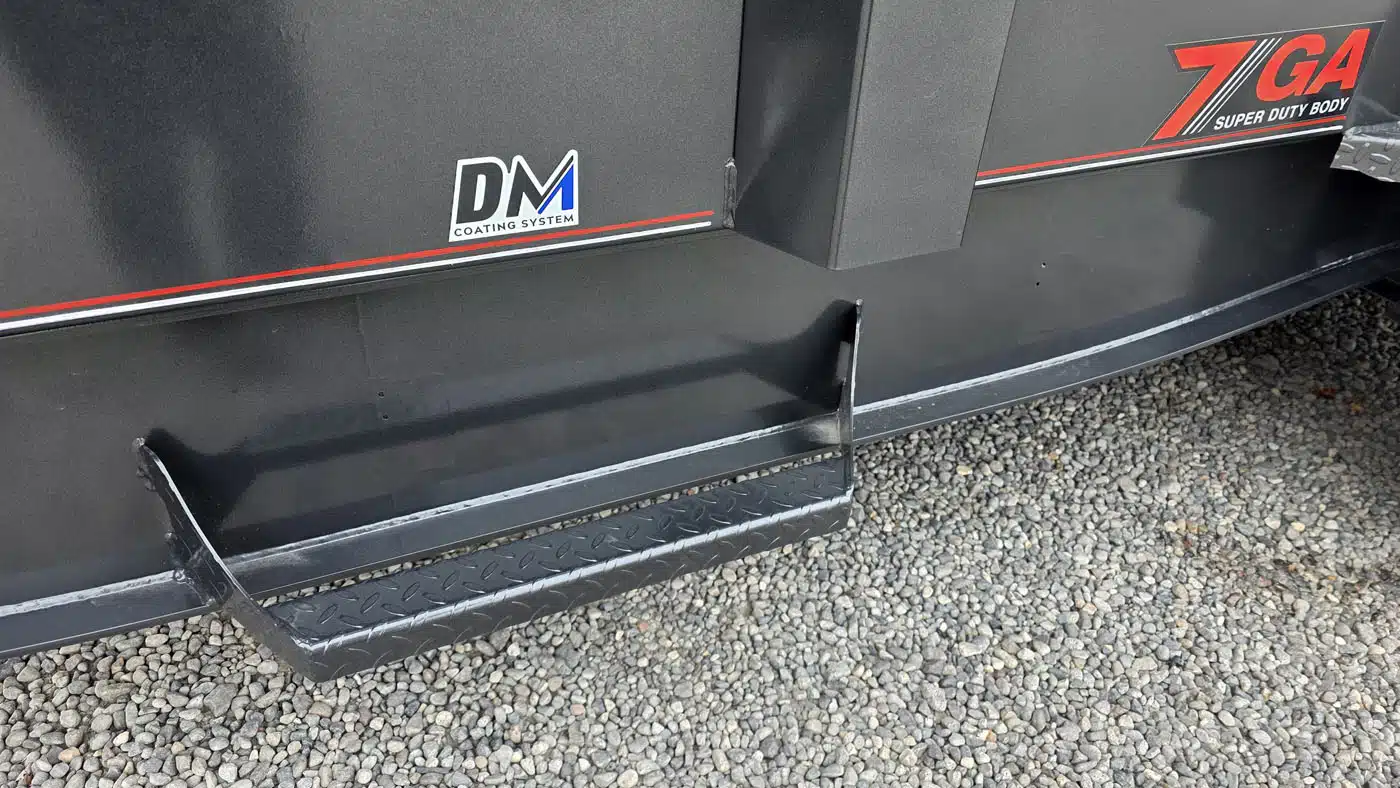

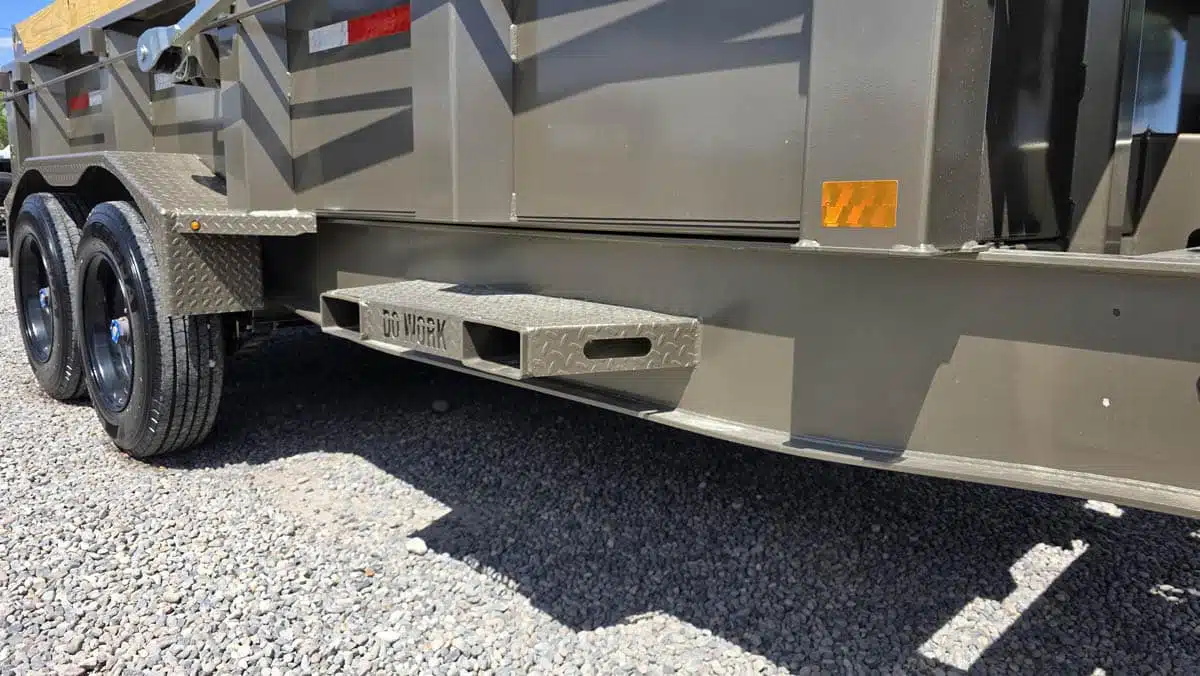

Steps – (1) 24” Side-Step – Driver Side
Lights – All LED Lights
Stake Pockets – Stake Pockets on each Upright
Tie Downs – (4) 5/8” D-Rings
Fork Holder – Add Fork Holders

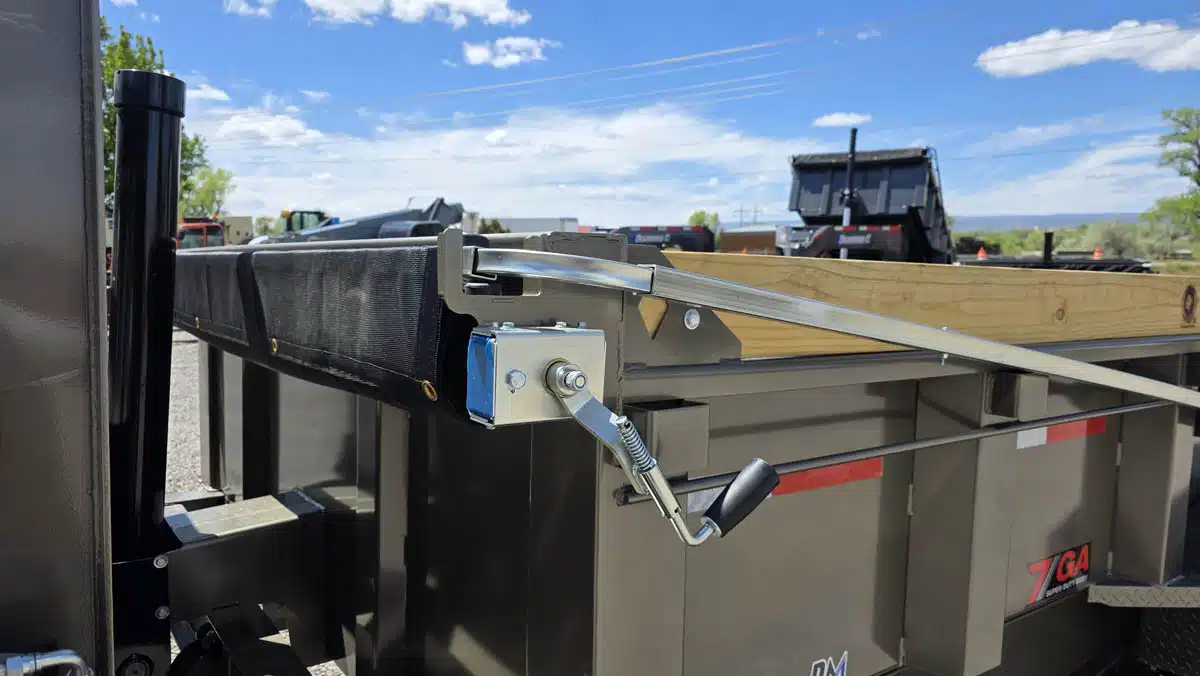

Tarp – 20’ Long Arm, Easy Roll Tarp System
Wiring – Sealed Wiring Harness
Tire Size – 215/75 R17.5, 18ply
Wheel Color – Black

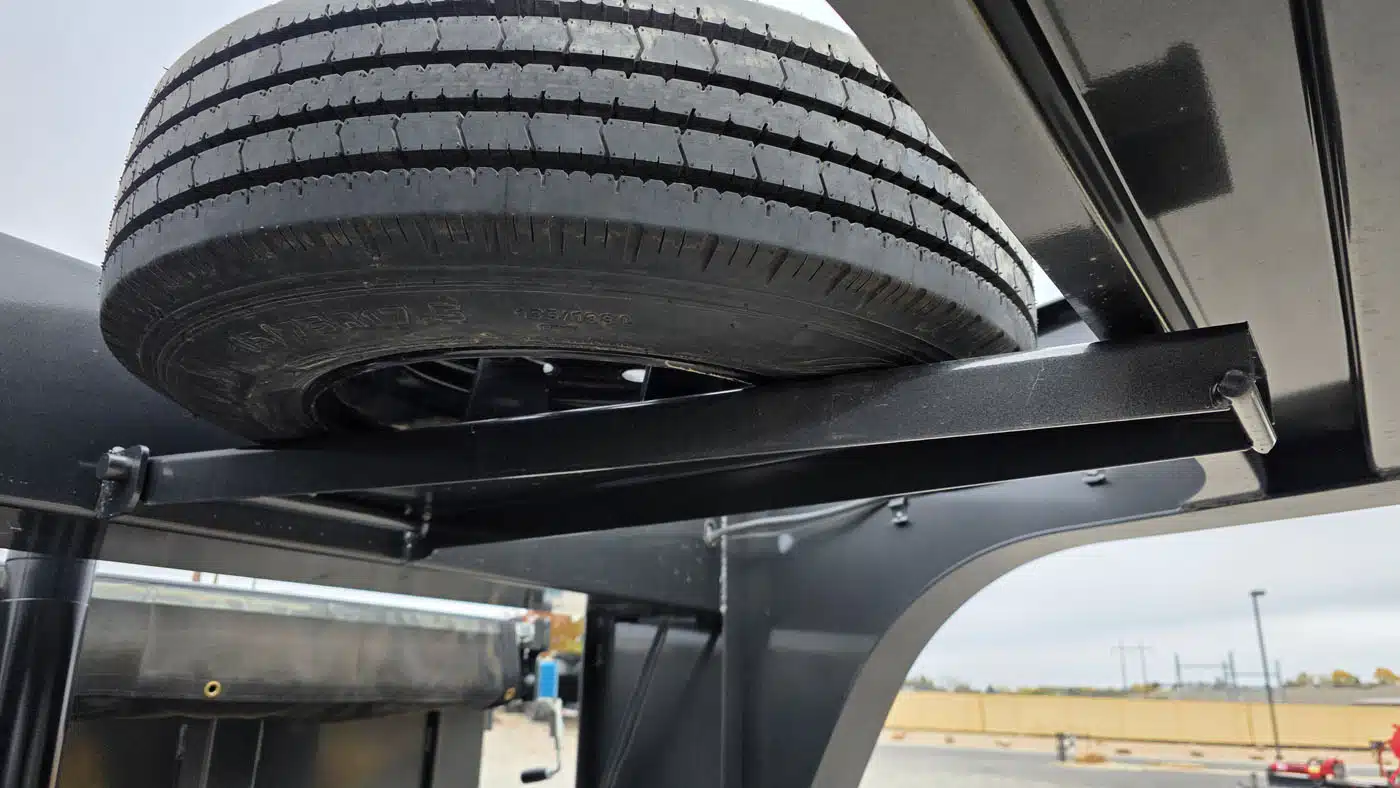

Spare Mount – Fold-down Spare Mount in Gooseneck
Matching Spare Tire
