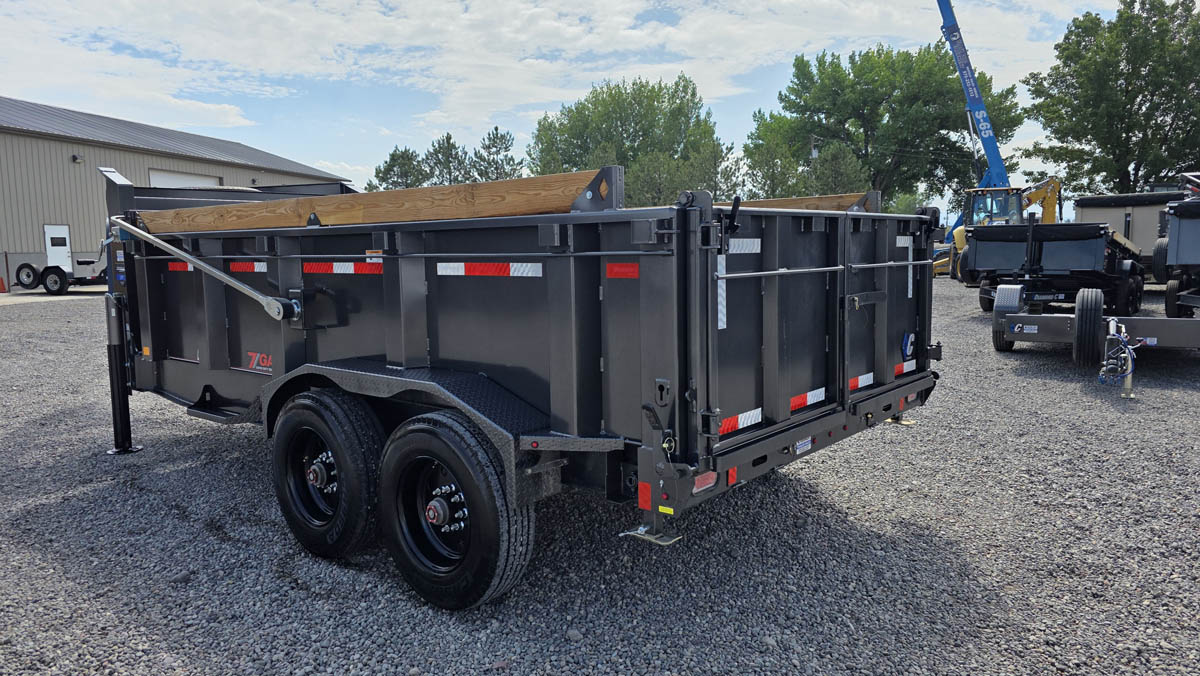

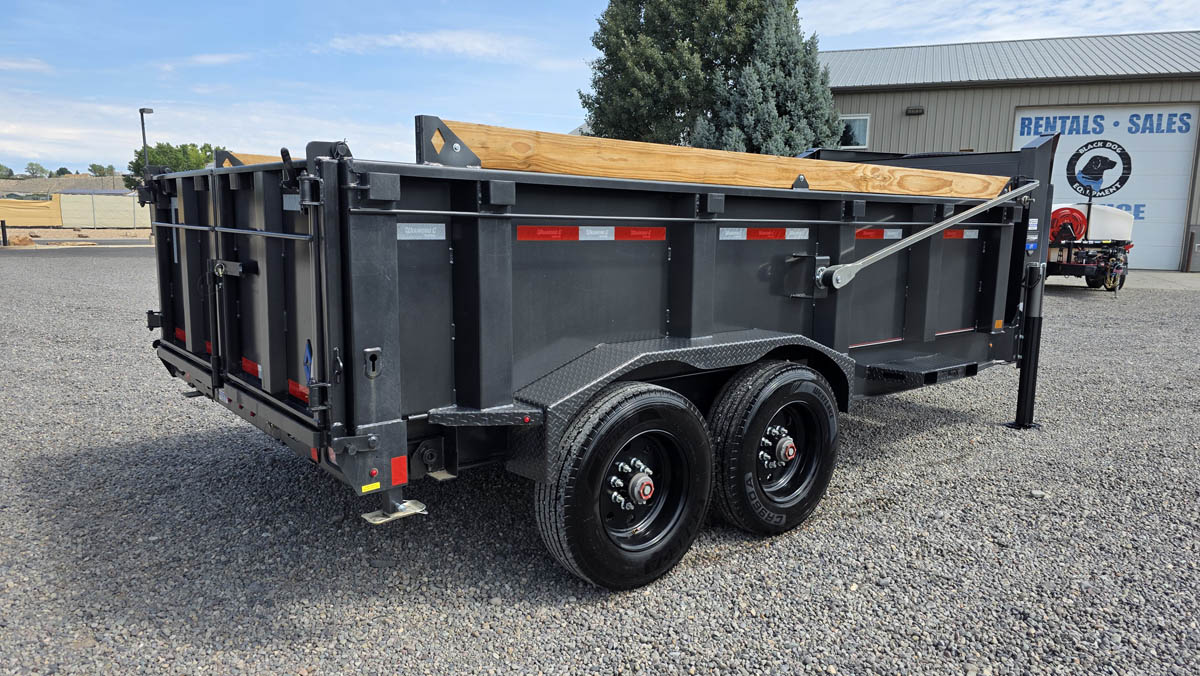

Brand - Diamond C Trailers
Model – LPT-GN210
Length/Width – 14’ x 82”
GVWR – 23,000lbs
Dry Weight – 6,910lbs
Payload – 16,090lbs
Axles – (2) 10,000 lbs. Oil Bath, Torsion
Brakes – Electric Drum
Suspension – Torsion Axles

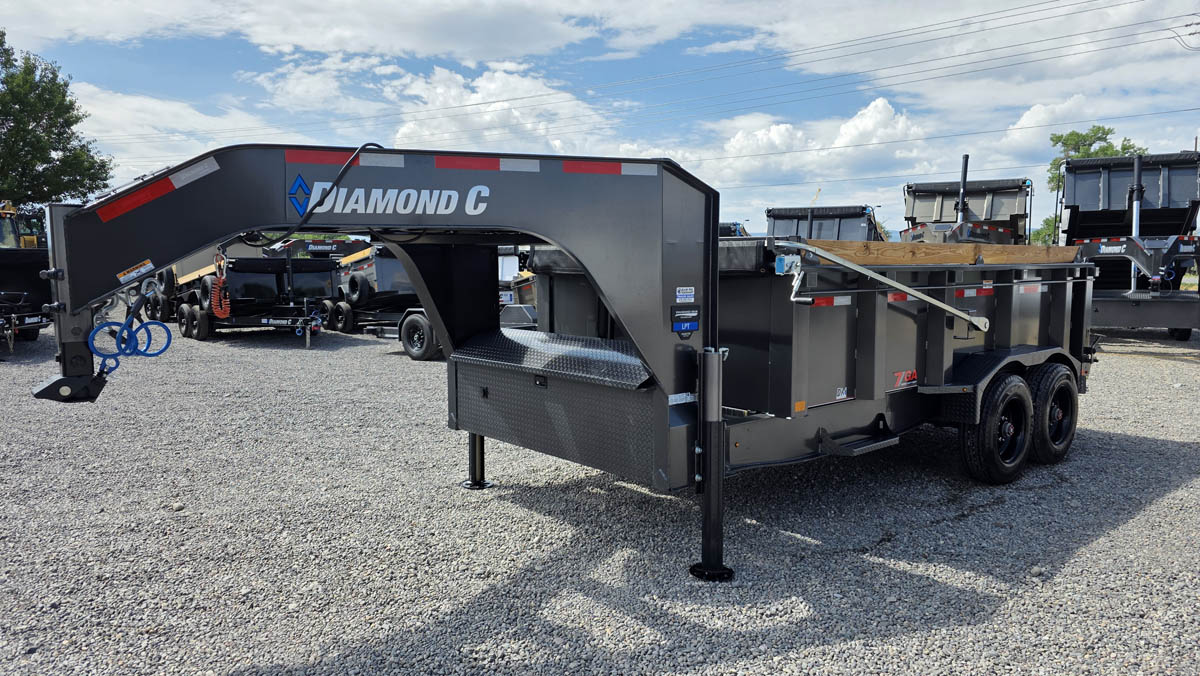

Pull Type – 12” Engineered Gooseneck Package
Dump Main Frame – Engineered Beam Frame
Dump Body Frame – 5” x 2” x 3/16” Rectangle Tube

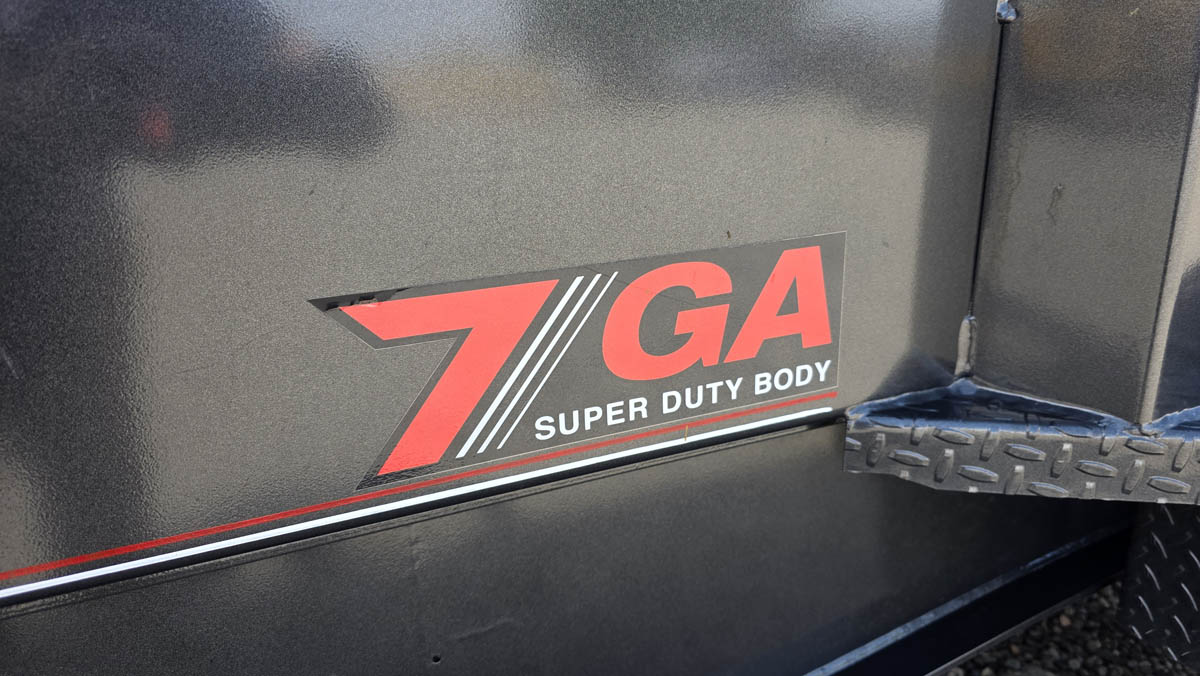

Body Thickness – 7ga (3/16”) Body, Floor, & Sides (UPGRADE)
Sides - 32” Tall Sides (7ga)
Side Extensions – Board Brackets w/ Raised Front (PSE)

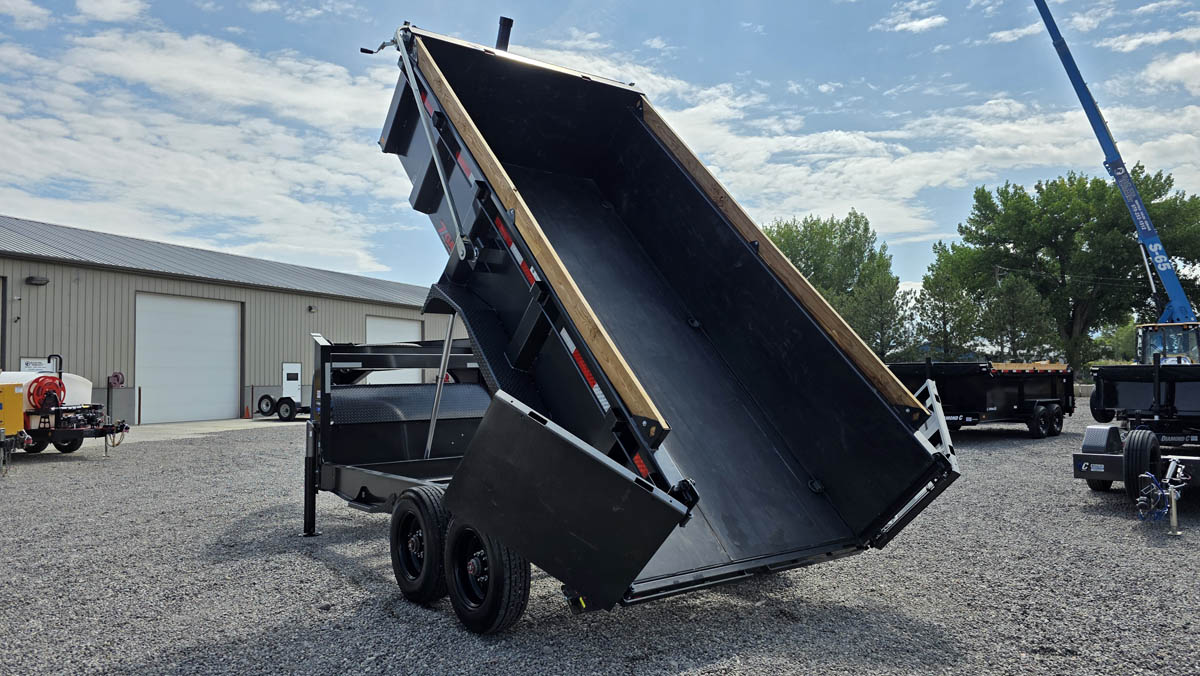

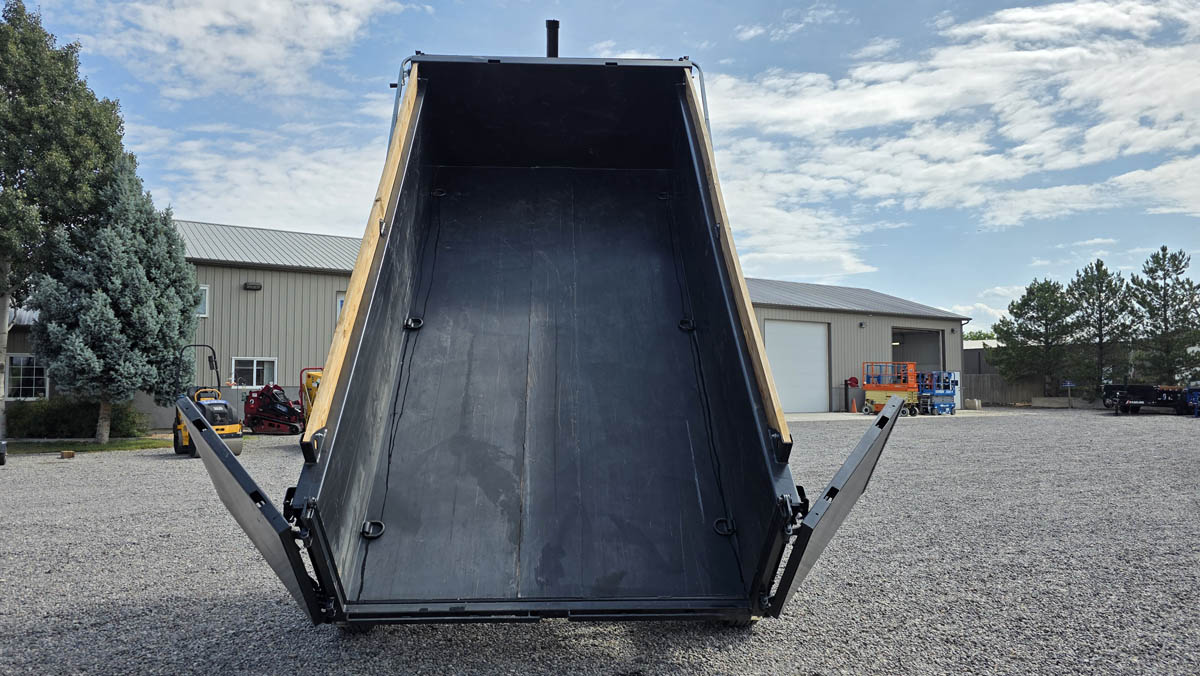

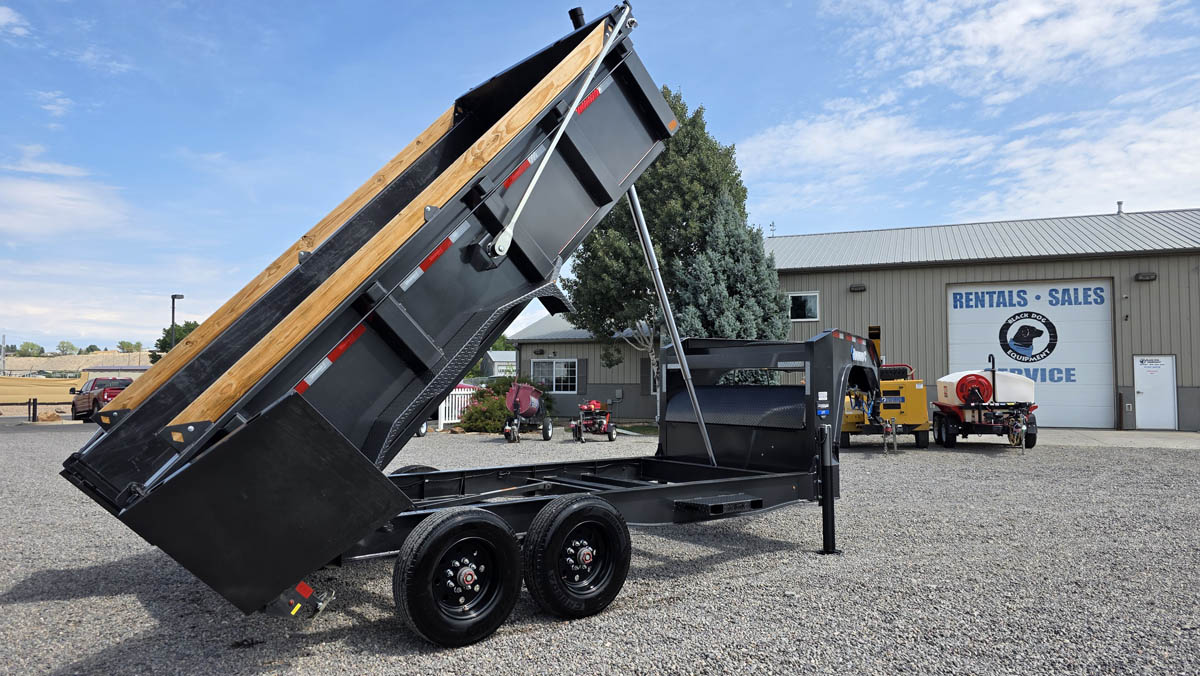

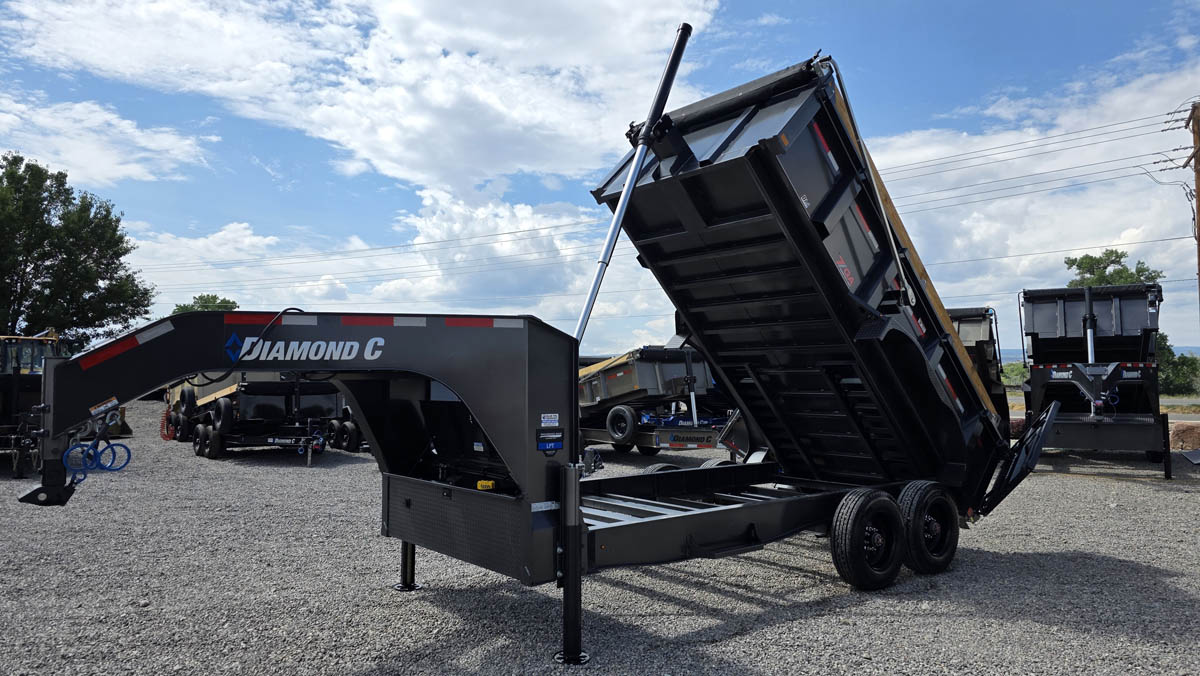

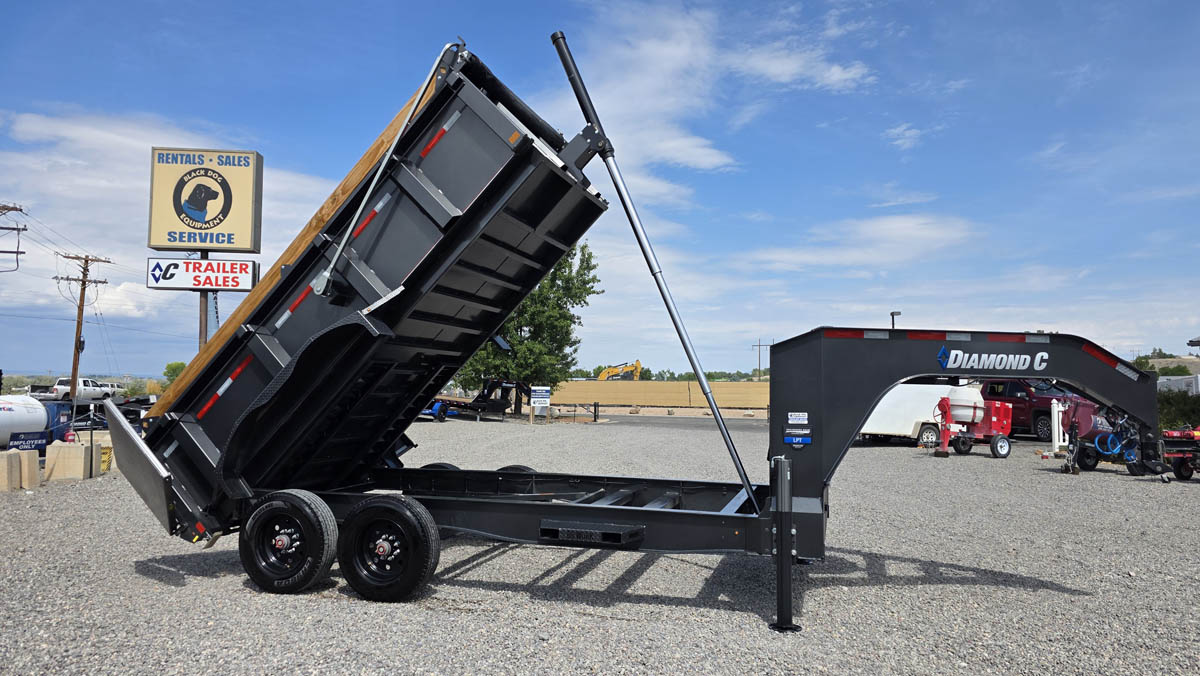

Hoist – 3 Stage Telescopic Cylinder

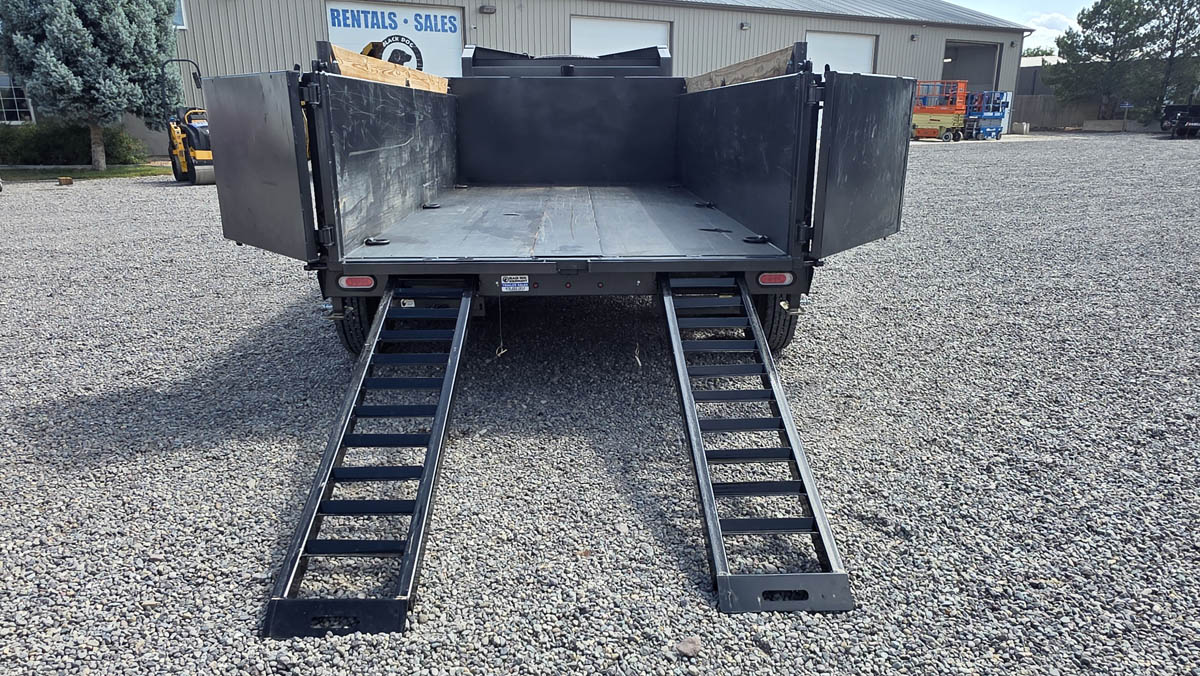

Ramps – HD 78” Rear Slide-In Ramps (3” Channel)
Ramps – Rear Stabilizer Drop Legs (PSE)

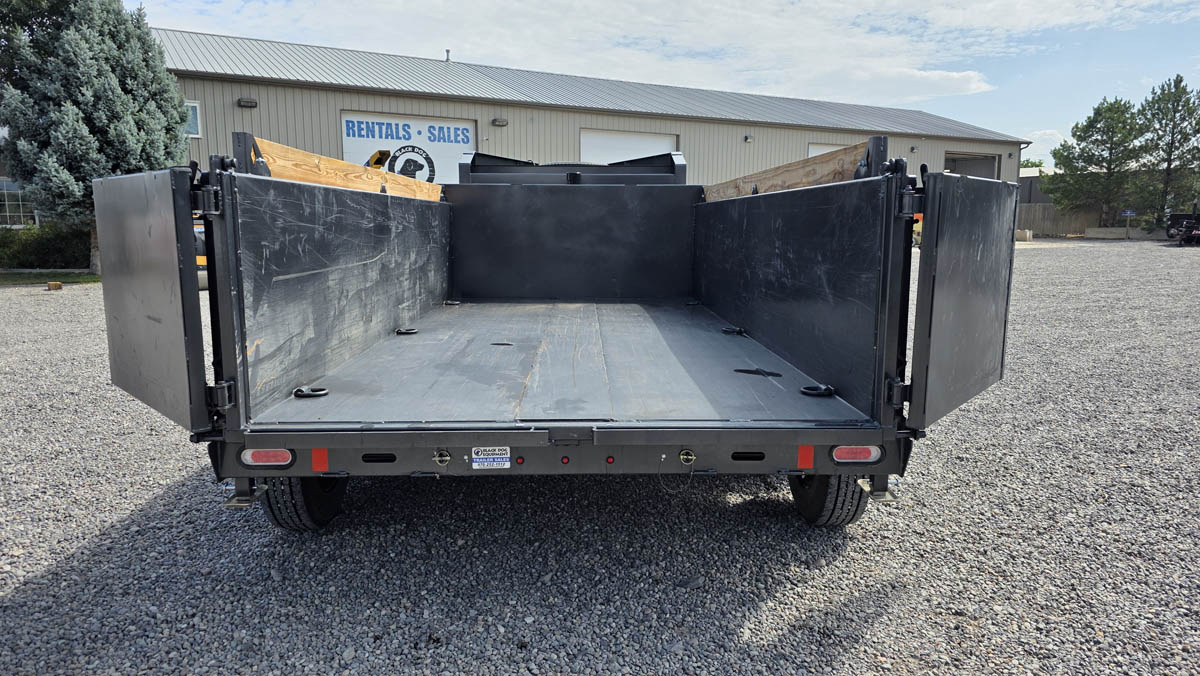

Gate – 3-way gate (with Hold Back System)
Paint – DM Difference Maker Powder Coating System
Paint Color – Carbon Metallic Gray
Cross-Members – 3” I-Beam on 12” Centers (UPGRADE)
Gooseneck Coupler – 2 5/16” Ball, Curt Cushion Coupler
Jack – Dual 20K Hydraulic Jacks (PSE)

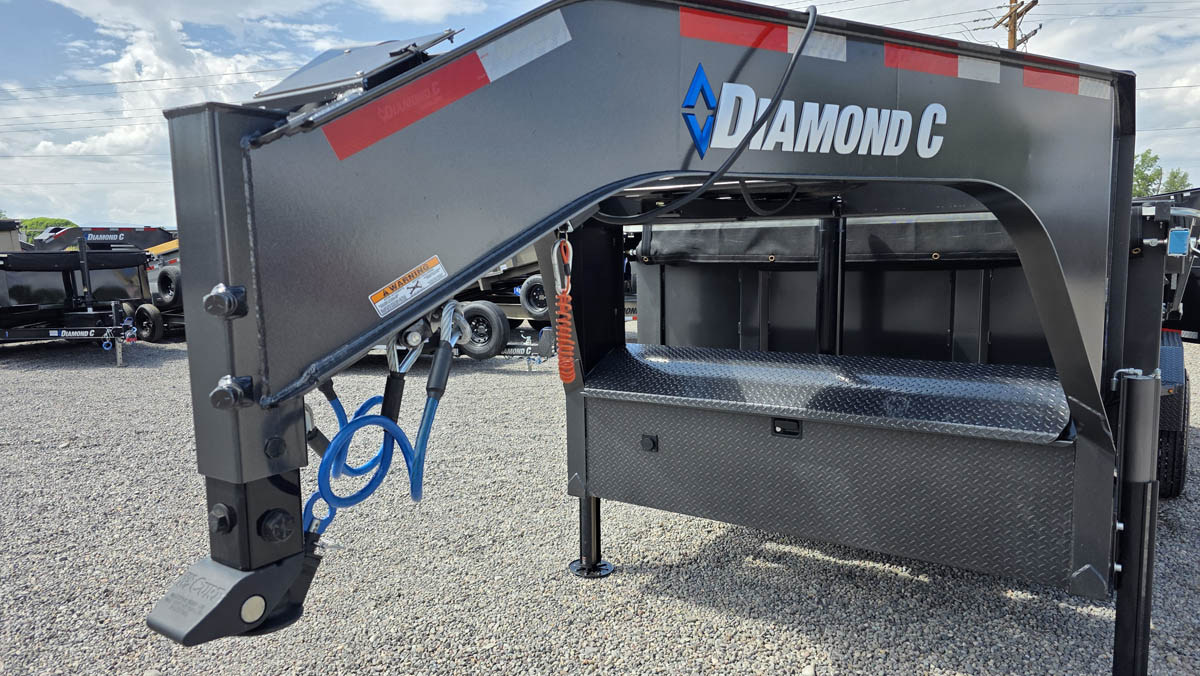

Storage – Full width Diamond Plate Neck Box

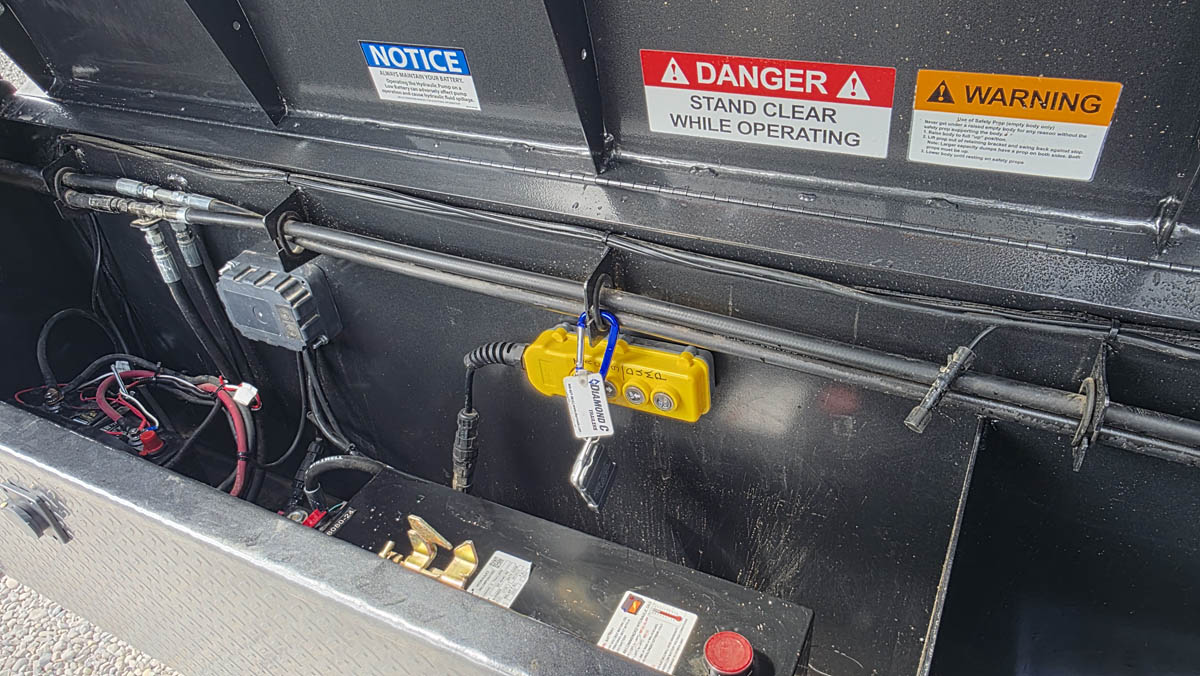

Hydraulic Power – Power-Up, Gravity Down (with High Flow KTI Pump)
Bed Control – Corded Remote, 14’
Battery/Charger – Group 27 Series w/110V 5-amp Charger
Bed Control – Shurco Wireless Remote (PSE)
Battery/Charger – Solar Charging System, 7 watts (PSE)
Fenders – 3/16” Diamond Plate, Super Heavy Duty (PSE)
Steps – Fork Holder Step – Driver Side (PSE)
Lights – All LED Lights
Stake Pockets – Stake Pockets on each Upright
Tie Downs – (2) Extra – 5/8” D-Rings, Total of (6) (UPGRADE)

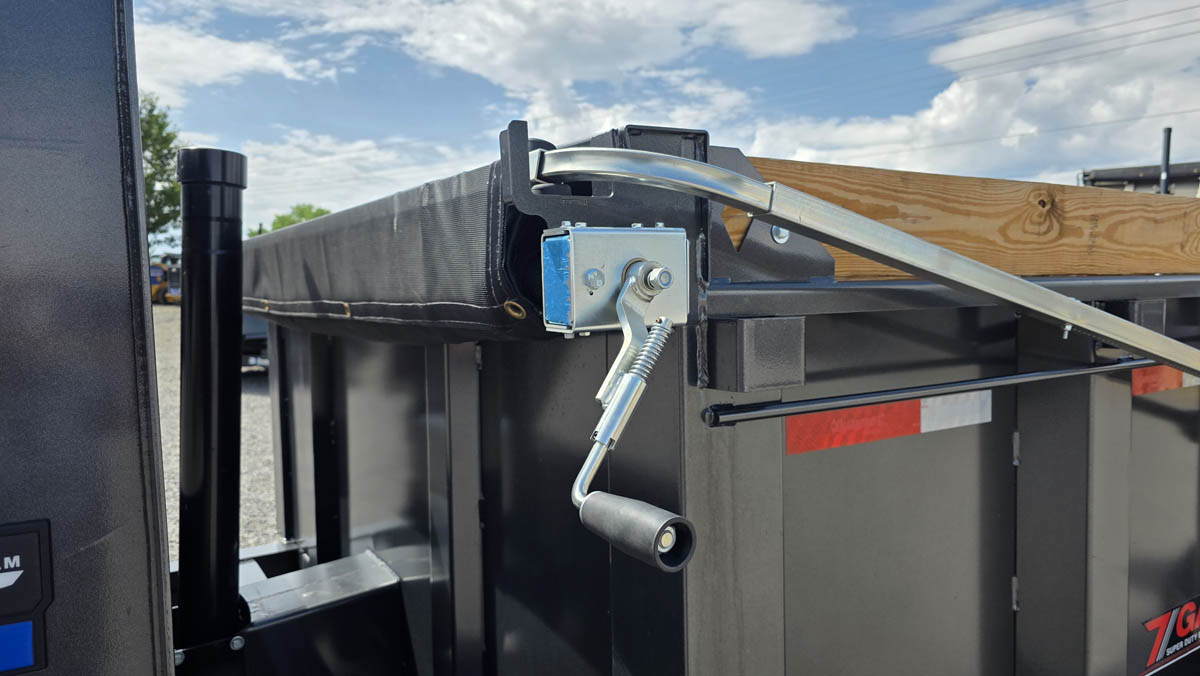

Tarp – 20’ Long Arm, Easy Roll Tarp System
Wiring – Sealed Wiring Harness
Tire Size – 235/75 R17.5, 18ply
Wheel Color – Black
Matching Spare Tire and Mount
