Caterpillar 246D3 Skid Loader Rental

Category: Skid Loaders

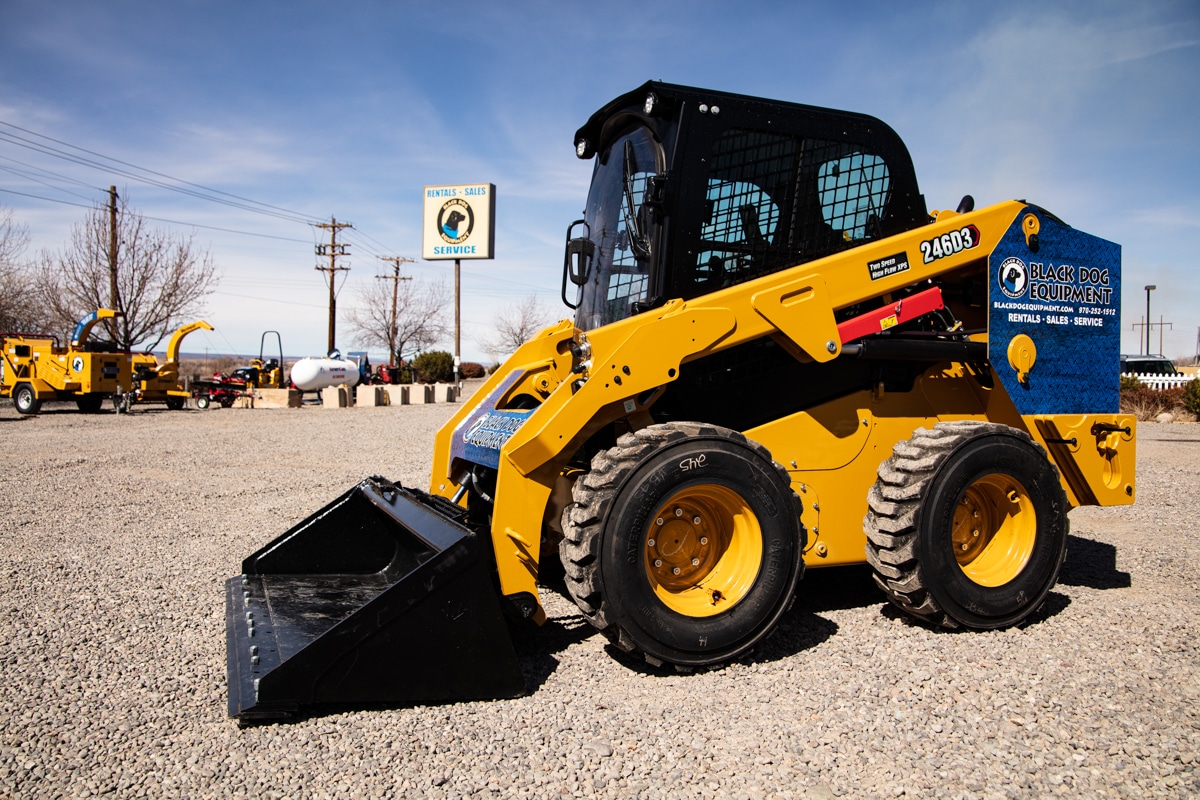

Side profile of CAT 246D3 Skid Loader Rental
Due to freezing temperatures, this item has attachments that have Seasonal Availability.

Photo Shown with Smooth Bucket.

  • Length: 11’8″
  • Width: 6′
  • Height: 6’8″
  • Weight: 7,230 lbs
  • Net Horse Power: 74HP
  • Operating Capacity: 2,100lbs
  • Tipping Load: 4,000lbs

Rental Request Form

  • Please Note: This is not an official reservation. This is a request only to inquire about availability on the date needed.

Attachments Needed?
Trailer Needed? *

Available Attachments:

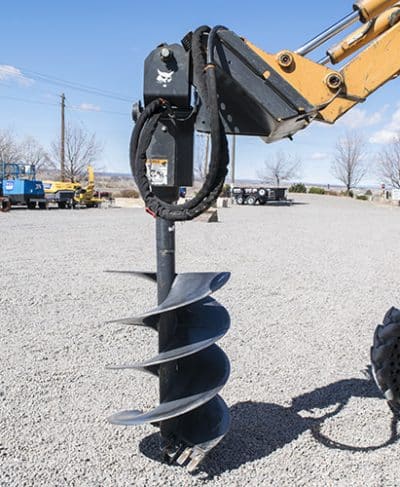

Auger Head Attachment

Universal style mount allowing use with nearly any popular skid-loader manufacturer. Standard Flow hydraulics. 9″, 12″, 18″ and 24″ Augers available with rental.

Operating Weight: 360 lbs
Maximum Digging Depth: 62″ (with extension)
Maximum Speed: 85 RPM
Maximum Flow Rate: 18 GPM
Maximum Torque: 5,830 ft lbs

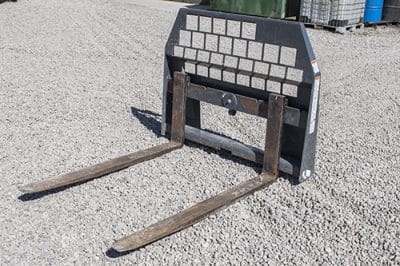

Standard Pallet Forks Attachment

All-Welded Steel Construction. Universal quick-attach mount. ITA Style forks that lock into position.

Weight: 157 lbs
Maximum Capacity: 3,700 lbs
Fork Dimensions: 1-3/8″ x 48″

Standard/Smooth Bucket Attachment

Weight: 560 lbs
Dimensions: 34″ x 74″ x 23.5″
Capacity: 20.6 cu ft

72” Grapple Bucket Attachment

Depth: 29.5
Width: 72”
Height Grapples Closed: 20.7”
Jaw Opening: 40”
Weight: 1180 lbs
Operating Pressure: 3325 PSI
